Migrating a TDE-enabled vPDB

Migrating a TDE-enabled virtual pluggable database (vPDB) from one container database to another container database on the same target host or a different target host involves the following steps:

  1. Disable the vPDB.

  2. Migrate.

  3. (Applicable only for software keystore based vPDB)
    For a software keystore based vPDB, there are additional steps that are required before the enable. The steps are necessary because the keystore and exported keyfiles are not present on Delphix Continuous Data storage. These steps are:

    1. Copy the parent TDE keystore from the original target host to the new target host. If the vPDB is not being migrated to a new target host, then this step is not needed. Similarly, if the new host has the parent keystore in a different location, then the parent keystore path for the vPDB needs to be updated.

    2. Copy the artifact directory for the vPDB from the original target host to the new target host. If the vPDB is not being migrated to a new host, then this step is not needed.

    3. Ensure that the new target container has the TDE keystore password set.

    4. Merge the original target keystore into the new target keystore. This is required to support a rewind operation to a snapshot taken before the migrate.

  4. (Applicable only for OKV-enabled or HSM-enabled vPDB)
    For a TDE OKV or HSM-enabled vPDB, additional steps are required before enabling. These steps are essential because the exported keyfiles are not present on Delphix Continuous Data Storage:

    1. Provide access to the vPDB master encryption key on the new target endpoint (refer to Oracle Key Vault documentation or CipherTrust Manager documentation).

    2. Copy the artifact directory for the vPDB from the original target host to the new target host.

    3. Ensure that the new target container has the TDE Key Manager Credential set.

  5. Enable.

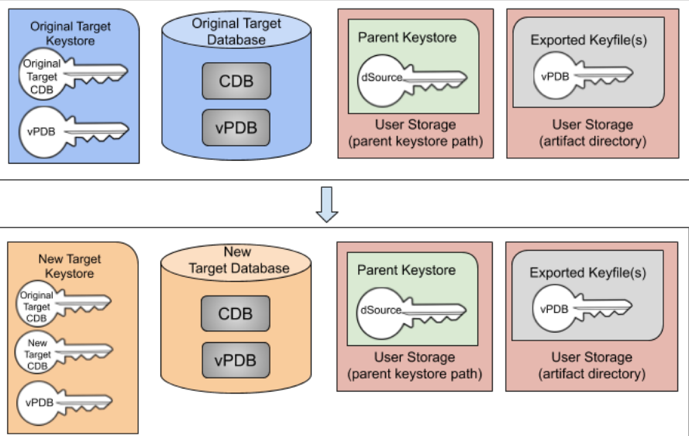

The diagram below illustrates the scenario of a migrated TDE-enabled vPDB.

Migrated TDE-enabled vPDB (software-based key store)

Example for TDE software keystore based vPDB

Consider the following TDE software keystore based vPDB:

This vPDB is currently provisioned to the container database CDOMLOTG9620 on the host tde-target18. Connecting to that database, you can see the keys for the target container and the vPDB:

CODE
SQL> show pdbs
CON_ID CON_NAME            OPEN MODE  RESTRICTED
------ ---------------------- ---------- ----------
     2 PDB$SEED            READ ONLY  NO
     3 CDOMLOTG9620PDB1        READ WRITE NO
     4 CDOMLOTG9620PDB2        READ WRITE NO
     5 CDOMLOTG9620PDB3        READ WRITE NO
     6 TDE_VPDB            READ WRITE YES
SQL> select con_id, key_id from v$encryption_keys;
CON_ID KEY_ID
------ ----------------------------------------------------
     1 ASFwmcfaMk8vv1LvzV0H8BEAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
     6 AdDdKibLKU9mv6PDAIvVvH0AAAAAAAAAAAAAAAAAAAAAAAAAAAAA

The key for the target container starts with ASFwmcfa and the vPDB key starts with AdDdKibL. There is also an artifact directory for this vPDB found in <toolkit_directory>/oracle_tde_keystores:

CODE
$ ls /toolkit/oracle_tde_keystores/
tde_vpdb_Encrypted_e9d2befb-9849-43c8-85f5-5ee8b760e334

Migrate this vPDB to the container database CDOMLOTGCAE8 located on the host tde-target18b. Currently, that container has the following configuration:

CODE
SQL> show pdbs
CON_ID CON_NAME            OPEN MODE  RESTRICTED
------ ---------------------- ---------- ----------
     2 PDB$SEED            READ ONLY  NO
     3 CDOMLOTGCAE8PDB1        READ WRITE NO
     4 CDOMLOTGCAE8PDB2        READ WRITE NO
     5 CDOMLOTGCAE8PDB3        READ WRITE NO
SQL> select con_id, key_id from v$encryption_keys order by con_id;
CON_ID KEY_ID
------ ----------------------------------------------------
     1 Ad344VSUDk/jv1VDb1QNBHMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
     3 AetaL+IKpE+ov5avXouApwUAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
     4 AXZTgaBbxk+6v6x2yHQ4ArgAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
     5 AayTgbjkJE/3v82/hBBBAWEAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

The new target container has a CDB key starting with Ad344VSU. The migration steps are as follows:

  1. Disable the vPDB in the original container on the host tde-target18a.

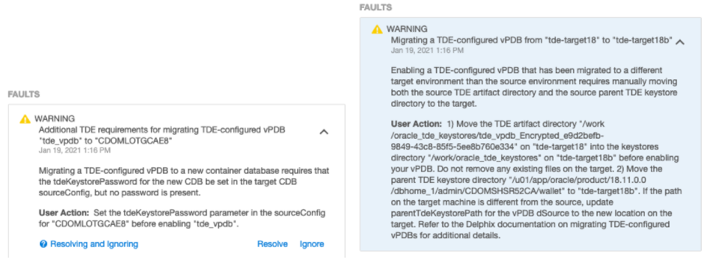

  2. Migrate the vPDB to point to the new container on the new target host tde-target18b. The UI will report the following warnings during the migrate operation, which indicate the manual steps which need to be done:

  3. Set the TDE Keystore Password for the new target container CDOMLOTGCAE8 on the new target host tde-target18b.

  4. Copy the parent keystore to the new target host tde-target18b. In this case, keep the existing location /u01/app/oracle/product/18.11.0.0/dbhome_1/admin/CDOMSHSR52CA/wallet on both hosts, so the configuration does not need to be updated.

  5. Copy the TDE artifact directory /toolkit/oracle_tde_keystores/tde_vpdb_Encrypted_e9d2befb-9849-43c8-85f5-5ee8b760e334 to the new target host tde-target18b. If there are no TDE-enabled vPDBs on the new target host, the oracle_tde_keystores directory may need to be created first.

    1. On the new target host, check if /toolkit/oracle_tde_keystores exists. Create it, if not. While creating the directory, you should make sure the group ownership is set to oinstall and the directory's permissions are set to 0770. For example:

      CODE
      mkdir -p /toolkit/oracle_tde_keystores
      chgrp oinstall /toolkit/oracle_tde_keystores
      chmod 0770 /toolkit/oracle_tde_keystores
    2. Copy the TDE artifact directory from the old target host to the new target host, preserving file permissions. For example, if using scp on the new target host:

      CODE
      scp -rp <old_target_hostname>:/toolkit/oracle_tde_keystores/tde_vpdb_Encrypted_e9d2befb-9849-43c8-85f5-5ee8b760e334 /toolkit/oracle_tde_keystores/
    3. If the copied files are now owned by a user that is not the Oracle home owner, add group-write permissions to key export files to prevent key imports from failing with ORA-46646: file from which keys are to be imported is invalid. For example:

      CODE
      find /toolkit/oracle_tde_keystores/tde_vpdb_Encrypted_e9d2befb-9849-43c8-85f5-5ee8b760e334 -name "*.keys" -exec chmod g+w {} \;
  6. Merge the original target keystore into the new target keystore. Oracle provides the ADMINISTER KEY MANAGEMENT MERGE KEYSTORE command to facilitate this. Note that you cannot successfully merge into a keystore that is currently in use by the database, so the recommended process is to first copy the original target keystore to the new host, merge the two keystores into a new keystore, replace the existing new target keystore and finally bounce the CDB to start using the merged keystore:

    1. Copy the original keystore to /tmp/tde-target18a on tde-target18b.

    2. Create a temporary directory /tmp/merged on tde-target18b.

    3. While connected to the new container on tde-target18b, issue the merge keystore command:

      SQL
      SQL> administer key management merge keystore '/tmp/tde-target18a' identified by
        *** and keystore '/u01/app/oracle/product/18.11.0.0/dbhome_1/admin/CDOMLOTGCAE8/wallet'
        identified by *** into new keystore '/tmp/merged' identified by ***;
    4. Copy the new merged keystore /tmp/merged/ewallet.p12 into the existing keystore location on tde-target18b (backing up the existing keystore first).

    5. If there is an autologin wallet configured for the container, it must be recreated:

      SQL
      SQL> administer key management create auto_login keystore from keystore
       '/tmp/merged' identified by ***;

      Copy the new merged autologin keystore /tmp/merged/cwallet.ssointo the existing keystore location on tde-target18b (backing up the existing autologin keystore first).

    6. Shutdown and restart the new target container database on the host tde-target18b.

  7. Confirm that the keystore now contains both the original key and the new key:

    CODE
    SQL> select key_id from v$encryption_keys where con_id = 1;
    KEY_ID
    ----------------------------------------------------
    ASFwmcfaMk8vv1LvzV0H8BEAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
    Ad344VSUDk/jv1VDb1QNBHMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

    Have the key starting with ASFwmcfa from the original container and the key starting with Ad344VSU from the new container.

  8. Enable the vPDB to complete the migration operation. The vPDB is successfully started in the new container, with its key starting with AdDdKibL:

    CODE
    SQL> show pdbs
    CON_ID CON_NAME   		   OPEN MODE  RESTRICTED
    ------ ------------------------------ ---------- ----------
         2 PDB$SEED   		   READ ONLY  NO
         3 CDOMLOTGCAE8PDB1   	   READ WRITE NO
         4 CDOMLOTGCAE8PDB2   	   READ WRITE NO
         5 CDOMLOTGCAE8PDB3   	   READ WRITE NO
         6 TDE_VPDB   		   READ WRITE NO
    SQL> select con_id, key_id from v$encryption_keys order by con_id;
    CON_ID KEY_ID
    ------ ---------------------------------------------
         1 Ad344VSUDk/jv1VDb1QNBHMAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
         1 ASFwmcfaMk8vv1LvzV0H8BEAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
         3 AetaL+IKpE+ov5avXouApwUAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
         4 AXZTgaBbxk+6v6x2yHQ4ArgAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
         5 AayTgbjkJE//v82/hBBBAWEAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
         6 AdDdKibLKU9mv6PDAIvVvH0AAAAAAAAAAAAAAAAAAAAAAAAAAAAA
    6 rows selected.

Example for TDE OKV-enabled vPDB

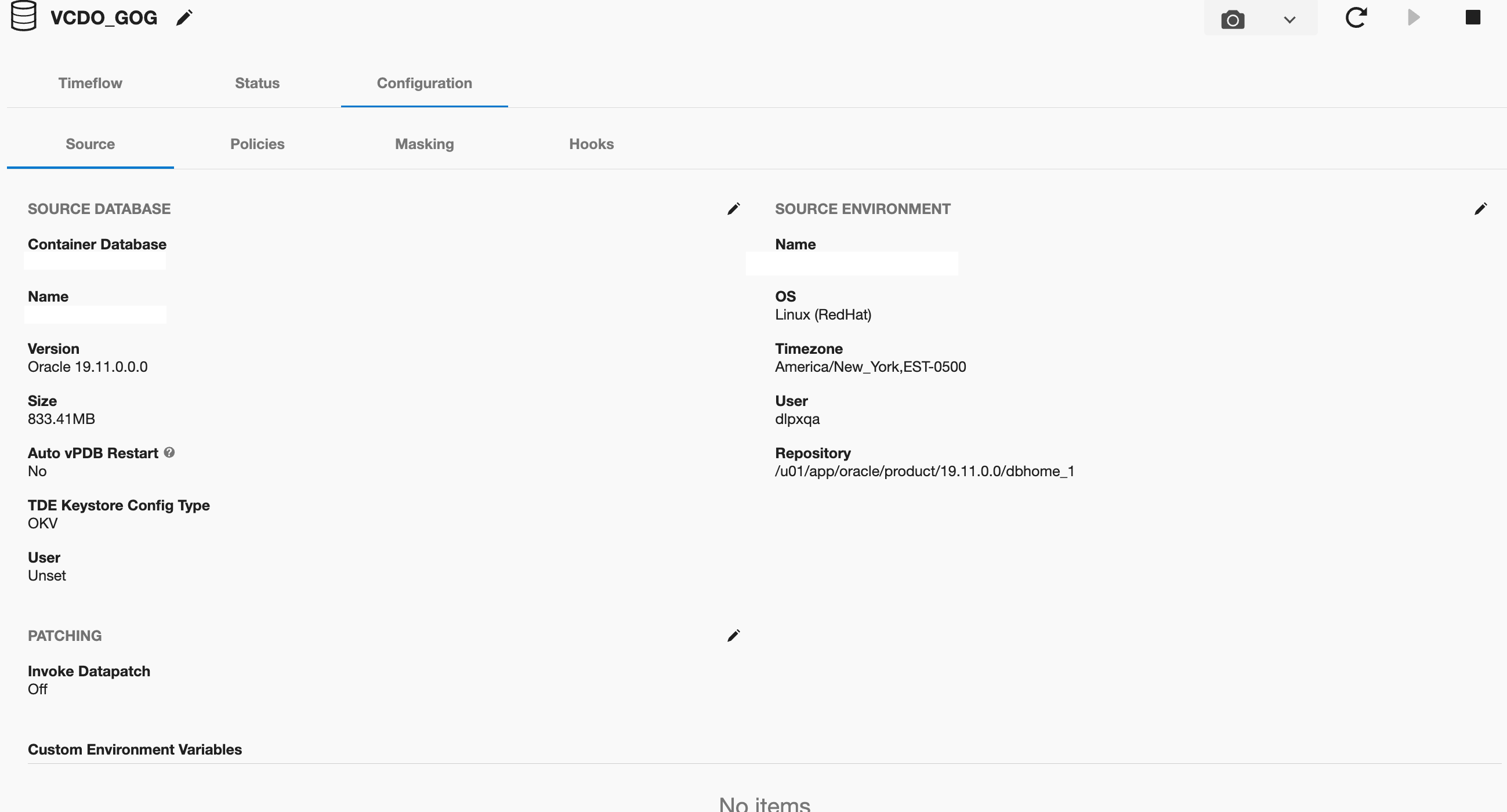

Consider the following TDE OKV-enabled vPDB:

OKV Enable vPDB Config Page.png

This vPDB is currently provisioned to the container database CDOMSHTGCF36 on the host tde-okv-target19. Connecting to that database, you can see the keys for the target container and the vPDB:

CODE
SQL> show pdbs
    CON_ID CON_NAME			  OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
	 2 PDB$SEED			  READ ONLY  NO
	 3 VCDO_GOG			  READ WRITE NO
SQL> select con_id, key_id from v$encryption_keys;
    CON_ID KEY_ID
---------- ------------------------------------------------------------
     1 06CB1F66B0B76E4FFFBFA67F9B47C5DC0
	 3 069A375EE65D7D4FD9BF4604513679C807

The key_id for the target container starts with 06CB1F66B0 and the vPDB key starts with 069A375EE6. There is also an artifact directory for this vPDB found in <toolkit_directory>/oracle_tde_keystores:

CODE
[oracle@ip~]$ ls /work/oracle_tde_keystores/
VCDO_GOG_Untitled_3f9c41d4-c123-42b4-ba36-56ef03ade746

Migrate this vPDB to the container database CDOMLOSR50BD located on the host tde-okv-source19. Currently, that container has the following configuration:

CODE
SQL> show pdbs
    CON_ID CON_NAME			  OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
	 2 PDB$SEED			  READ ONLY  NO
	 3 CDOMLOSR50BDPDB1		  READ WRITE NO
	 4 CDOMLOSR50BDPDB2		  READ WRITE NO
	 5 CDOMLOSR50BDPDB3		  READ WRITE NO
SQL> select con_id, key_id from v$encryption_keys where con_id=1;
    CON_ID KEY_ID
---------- ----------------------------------
	 1 06EC44AF4DD6FA4F49BF1D5C3267D3AEF4

The new target container has a CDB key starting with 06EC44AF4. The migration steps are as follows:

  1. Disable the vPDB in the original container on the host tde-okv-target19.

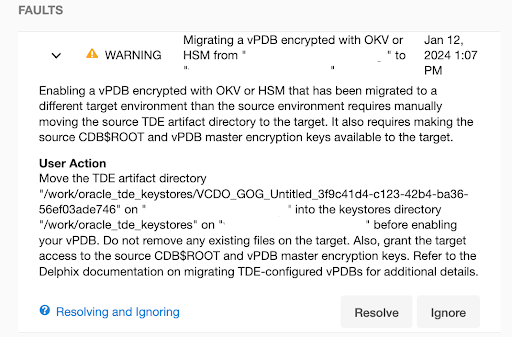

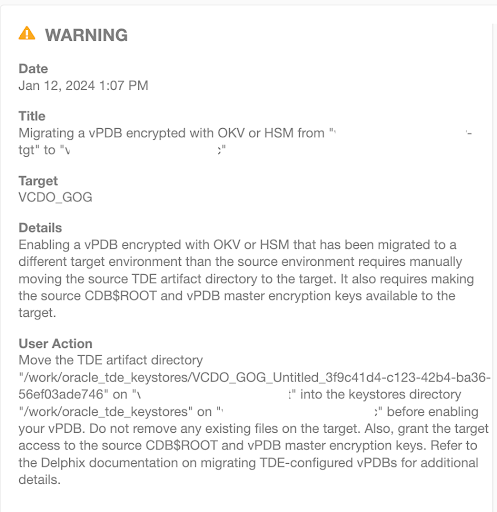

  2. Migrate the vPDB to point to the new container on the new target host tde-okv-source19. The UI will report the following warnings during the migration operation, which indicate the manual steps that need to be done:

  3. Set the TDE External Key Manager Credential for the new target container CDOMLOSR50BD on the new target host tde-okv-source19 if it is not already set. Please refer to Adding or Editing the TDE External Key Manager Credential.

  4. Grant the target access to the CDB$ROOT and vPDB master encryption keys (refer to Oracle Key Vault documentation) to add the members into the target virtual wallet.

  5. Copy the TDE artifact directory <toolkit_directory>/oracle_tde_keystores/VCDO_GOG_Untitled_3f9c41d4-c123-42b4-ba36-56ef03ade746 to the new target host tde-okv-source19. If there are no TDE OKV-enabled vPDBs on the new target host, the oracle_tde_keystores directory may need to be created first.

    1. On the new target host, check if <toolkit_directory>/oracle_tde_keystores exists. Create it, if not. While creating the directory, you should make sure the group ownership is set to oinstall and the directory's permissions are set to 0770. For example:

      CODE
      mkdir -p /work/oracle_tde_keystores
      chgrp oinstall /work/oracle_tde_keystores
      chmod 0770 /work/oracle_tde_keystores
    2. Copy the TDE artifact directory from the old target host to the new target host, preserving file permissions. For example, if using scp on the new target host:

      CODE
      scp -rp <old_target_hostname>:/work/oracle_tde_keystores/VCDO_GOG_Untitled_3f9c41d4-c123-42b4-ba36-56ef03ade746 /work/oracle_tde_keystores/
    3. If the copied files are now owned by a user that is not the Oracle home owner, add group-write permissions to key export files to prevent key imports from failing with ORA-46646: file from which keys are to be imported is invalid. For example:

      CODE
      find /work/oracle_tde_keystores/VCDO_GOG_Untitled_3f9c41d4-c123-42b4-ba36-56ef03ade746 -name "*.keys" -exec chmod g+w {} \;
  6. Enable the vPDB to complete the migration operation. The vPDB is successfully started in the new container, with its key starting with 069A375EE6:

    CODE
    SQL> show pdbs
        CON_ID CON_NAME			  OPEN MODE  RESTRICTED
    ---------- ------------------------------ ---------- ----------
    	 2 PDB$SEED			  READ ONLY  NO
    	 3 CDOMLOSR50BDPDB1		  READ WRITE NO
    	 4 CDOMLOSR50BDPDB2		  READ WRITE NO
    	 5 CDOMLOSR50BDPDB3		  READ WRITE NO
    	 6 VCDO_GOG			  READ WRITE NO
    SQL> select con_id, key_id from v$encryption_keys;
        CON_ID '06'||MKID
    ---------- ----------------------------------
    	 1 06EC44AF4DD6FA4F49BF1D5C3267D3AEF4
    	 6 069A375EE65D7D4FD9BF4604513679C807
