Provisioning Couchbase VDBs
Provisioning a Couchbase virtual database
To provision a virtual database (VDB), you can either use an existing dSource snapshot or use another VDB snapshot for VDB to VDB provisioning. A snapshot is a timeflow created in a dSource or VDB.
An environment can be associated with only one dSource/VDB at a time.
Prerequisites
You should either have linked a dSource from a staging instance following the instructions in Linking a CouchbaseDB dSource, or you should have already created a VDB from which you intend to provision another VDB.
A CouchbaseDB target environment must be set-up with the necessary requirements as described in CouchbaseDB support and requirements.
A CouchbaseDB binary with the same version as the source database must be installed on the Target host.
Provisioning a VDB
Navigate to Manage, and select Datasets.

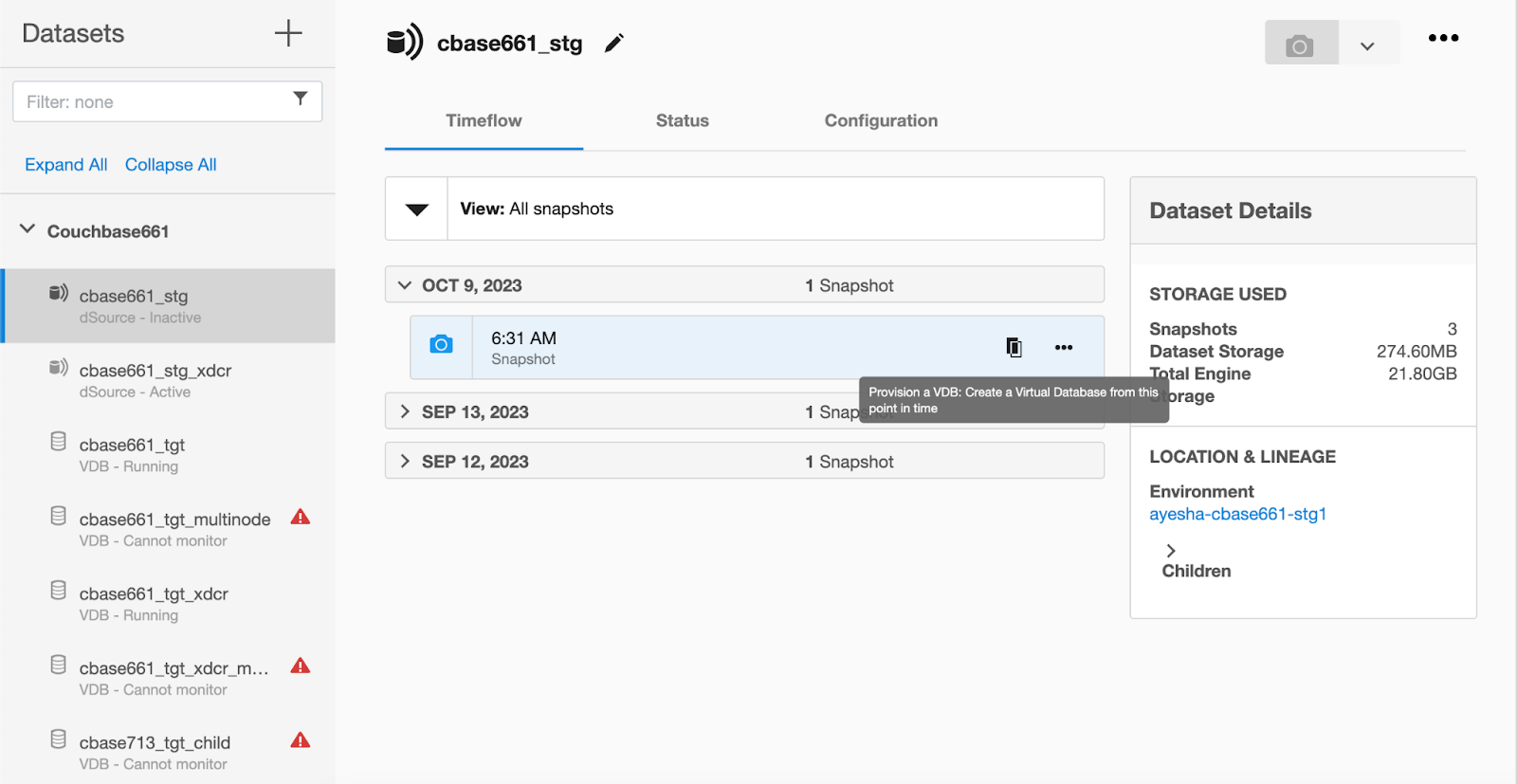

Select the dataset and the snapshot that you want provision from. Click the provision VDB icon to open the provision VDB wizard.
![image-20240417-174654.png](../../__attachments/131832693/image-20240417-174654.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)

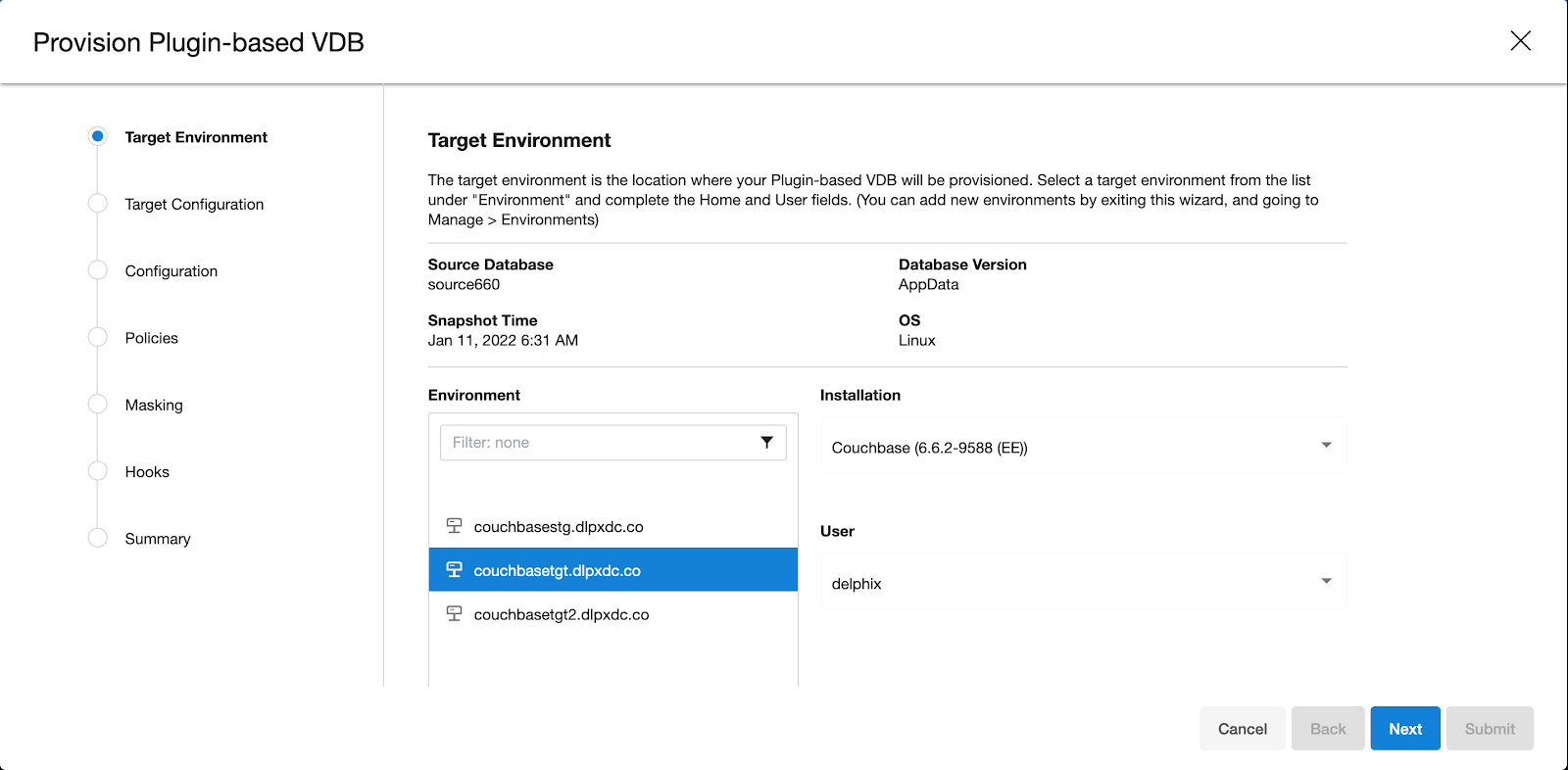

Select the target host from the dropdown on which VDB needs to be created.
![image-20240417-174728.png](../../__attachments/131832693/image-20240417-174728.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)

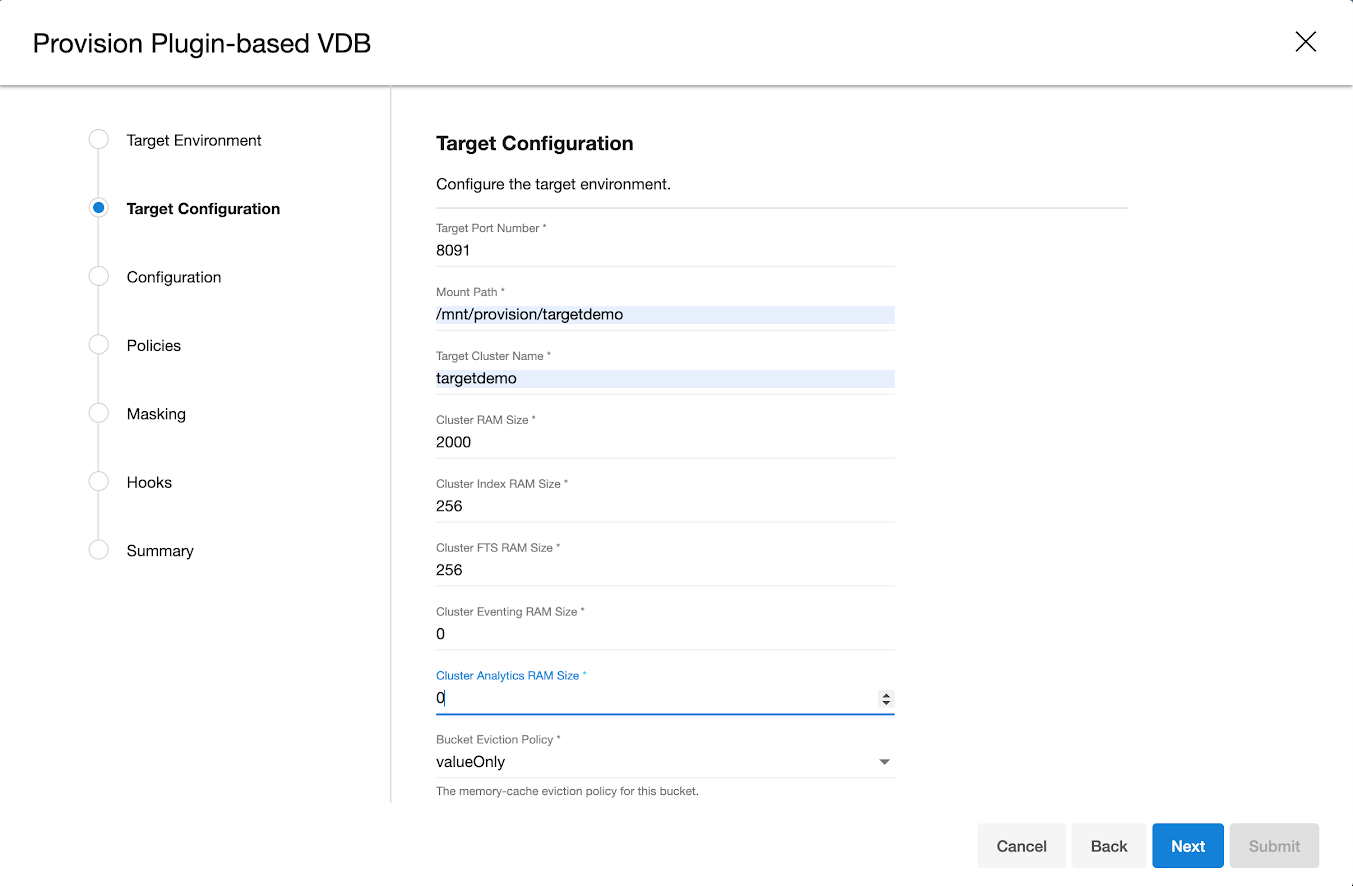

Enter the following values for the target configuration:
Target Port Number: Port number on which Couchbase services will be started. (ex. 8091).
Mount Path: NFS mount path where dSource snapshot will be mounted by Engine (ex. /mnt/provision/targetdemo).
Target Cluster name: Cluster name which is required to be set up on the target host. (ex. targetdemo).
Cluster Ram Size: Whole Cluster memory.
Cluster Index Ram Size: Cluster indexer memory.
Cluster FTS Ram Size: Cluster FTS memory (if needed and FTS service will be configured).
Cluster Eventing Ram Size: Cluster Eventing memory (if needed and Eventing service will be configured).
Cluster Analytics Ram Size: Cluster Analytics memory (if needed and Analytics service will be configured).
![image-20240417-175016.png](../../__attachments/131832693/image-20240417-175016.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)

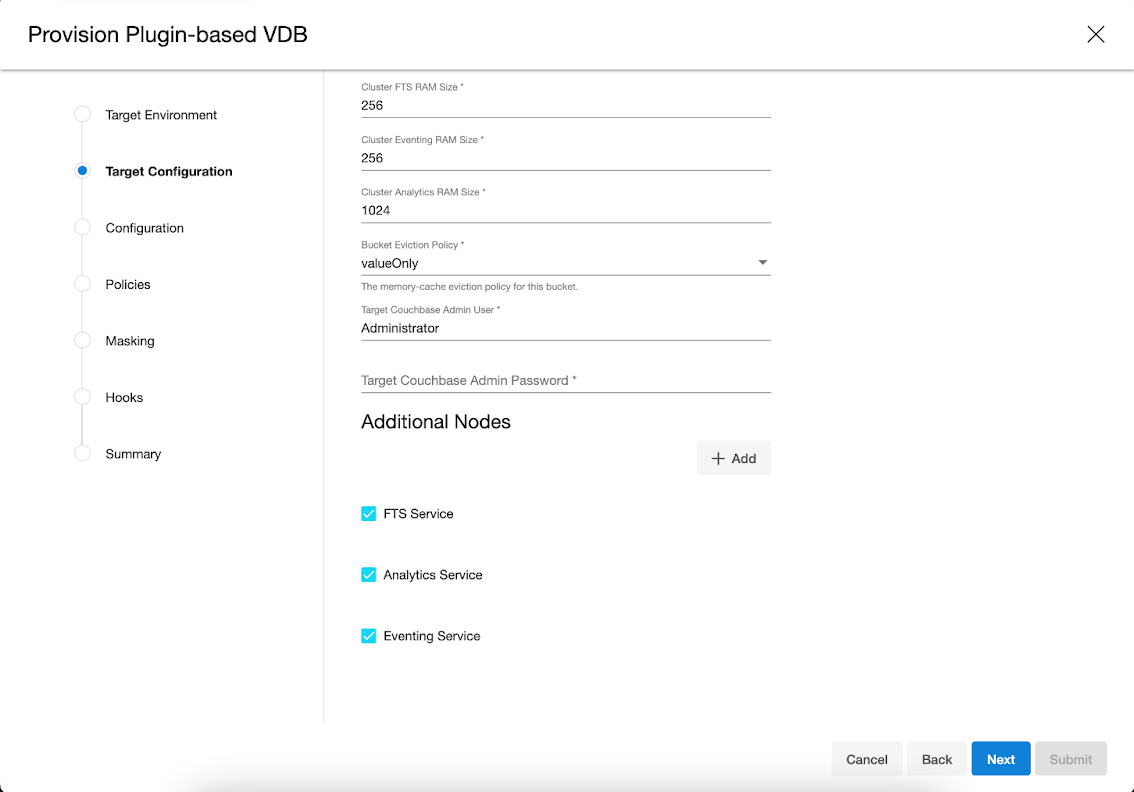

Enter the following values for the target configuration:
Target couchbase Admin User: Target Cluster admin username.
Target couchbase Admin password: Target Cluster admin password.
Select services needed on the target cluster (FTS, Eventing, Analytics).
![image-20240417-175142.png](../../__attachments/131832693/image-20240417-175142.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)
Provision connector based VDB. Enter the following value:
VDB Name: Delphix Target Cluster name.
Target group: Delphix Target Cluster group.

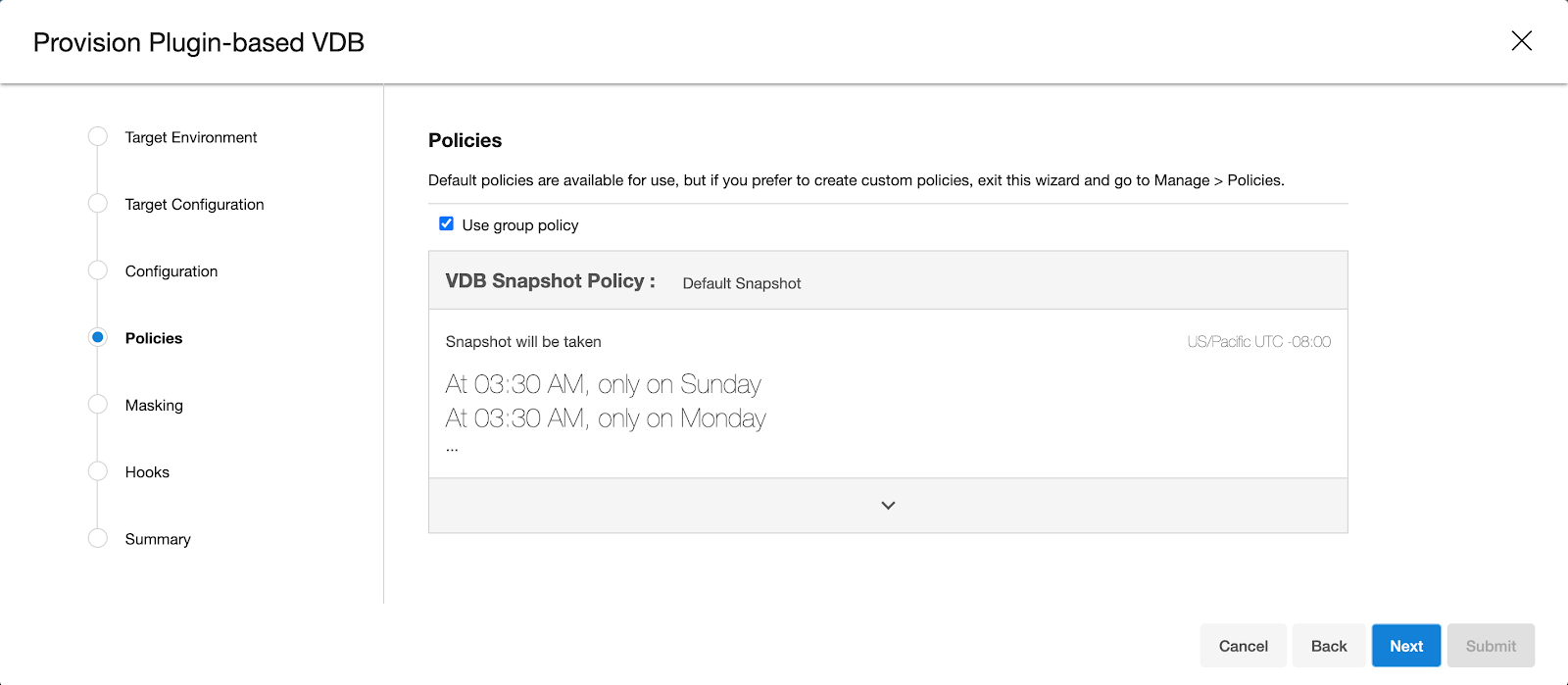

Select a policy for VDB, select Next.
Select masking for VDB if needed, select Next.

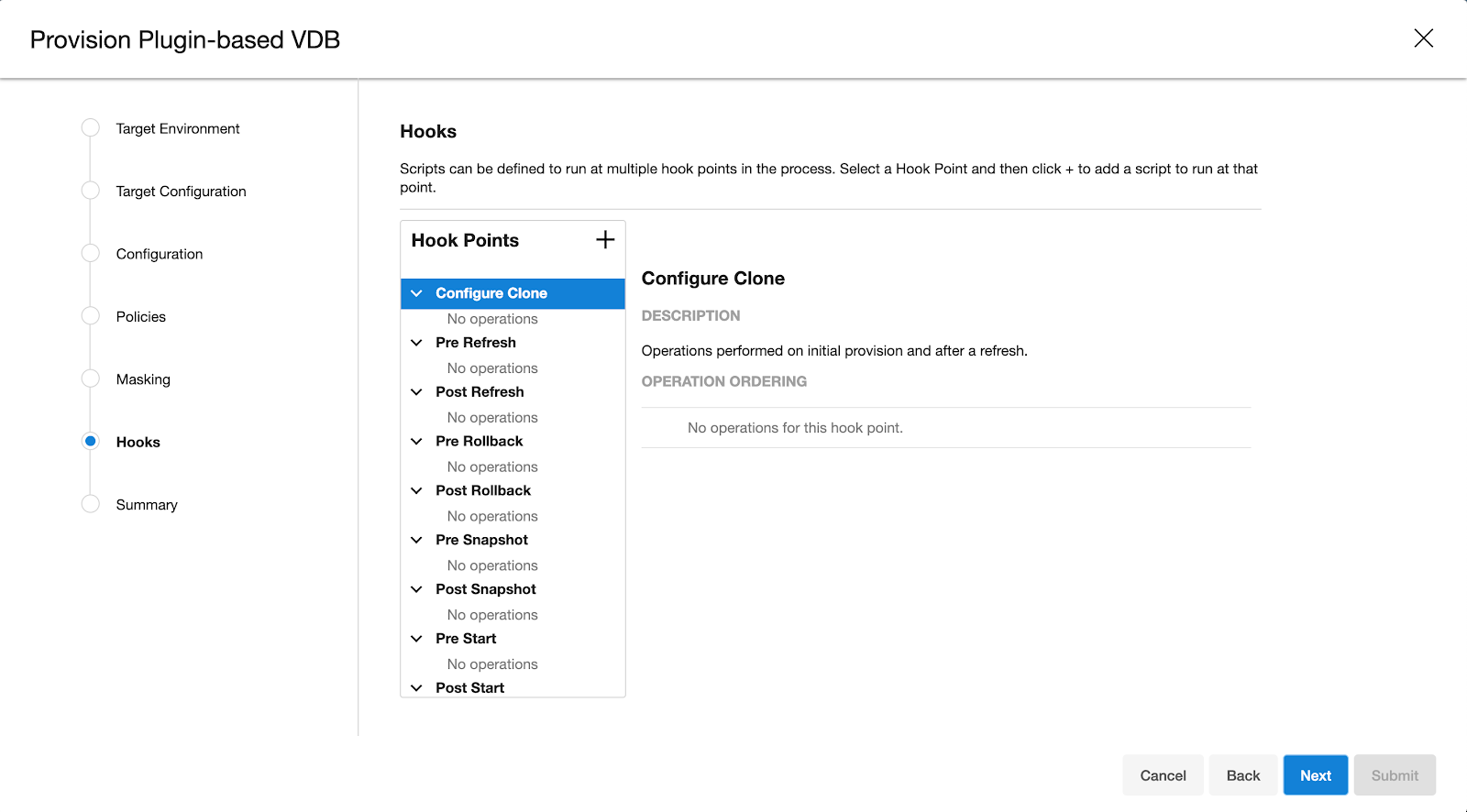

Add hooks for VDB if needed, select Next.
![image-20240417-175409.png](../../__attachments/131832693/image-20240417-175409.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)
Preview the summary and select Submit.
Once the VDB is created successfully, you can review the datasets on Manage > Datasets > vdb Name.
![image-20240417-175434.png](../../__attachments/131832693/image-20240417-175434.png?inst-v=9f5cd9ef-94fe-4677-b3c4-6c5d1617af5c)
