Requirements for staging and target Cassandra environments

Requirements

Staging Environment

Target Environment

The Delphix O/S user must be identical to the Cassandra software installer O/S user. Use the script createDelphixOSUser.sh to create the Delphix O/S user.

Y

Y

The Delphix O/S user must have read and execute privileges on the Cassandra install path, where software binaries are installed.

Y

Y

The Cassandra installation on the staging and target environment must have the same version as the source environment.

Y

Y

The Delphix O/S user configuration must be identical on all additional hosts, with the same UID and GID.

NOTE: This needs to be done for multi-node VDB setups on different target hosts.

N

Y

Cassandra binaries should be installed in identical locations. For example:

• If the primary node has the Cassandra binary at (/u02/cassandra/dse-node/bin/dse).

• All additional nodes must have the same version binary at the same location (/u02/cassandra/dse-node/bin/dse).

NOTE: This needs to be done for multi-node VDB setups on different target hosts.

N

Y

There must be a directory on the target environment with 2GB of available storage to install the Delphix Plugin.

Y

Y

An empty folder on the host is required to mount the NFS filesystem. This folder does not require additional space and serves as the base for NFS mounts.

Y

Y

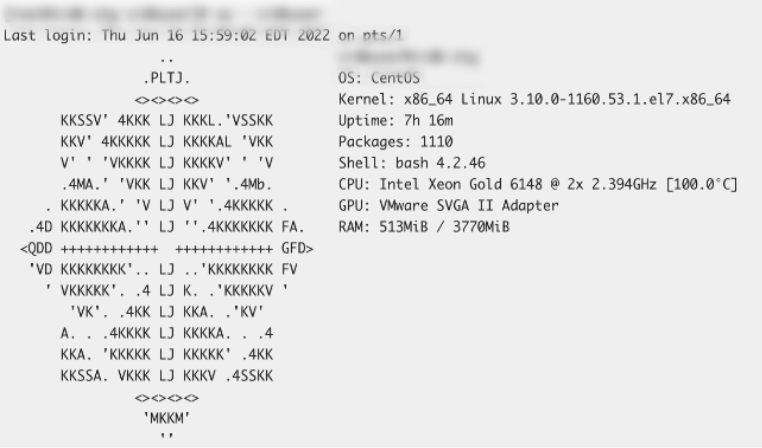

Disable any login banners similar to the one shown in the provided image on the target host.

Y

Y

The Delphix OS user account requires specific sudo privileges. Below is an example configuration for the sudo privileges for mount, umount, and IP commands on the staging host:

Defaults:delphix !requiretty

delphix ALL=NOPASSWD:/bin/mount,/bin/umount,/sbin/ip

Y

Y

Ensure the expect utility is installed on the staging and target host. Cassandra Connector runs password sensitive commands by making use of expect utility.

Y

Y
