Adding a JDBC connection string

If you need to define an additional JDBC connection string for any reason, take the following steps:

1. Follow the same steps as listed in Verifying a JDBC Connection String to reach the JDBC connection string definition(s).

2. Click the plus (+) sign to the right of Connection strings to define an additional connection string.



   Add Connection String Icon

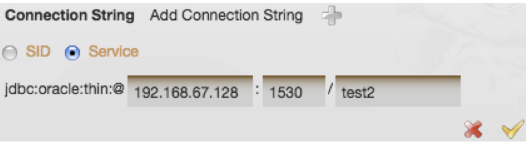

In the screenshot below, the user is adding a connection string for the “test2” service on port 1530 instead of the default 1521.

3. Click the Add to save the changes.

Follow the remaining steps in the Verifying a JDBC Connection String page to validate your newly added connection string.
