Password vault support

Overview

More and more organizations use Enterprise Password Vaults (EPV) such as CyberArk and HashiCorp Vault to store securely and centrally manage identities and credentials. Delphix has added CyberArk and HashiCorp Vault support to the Delphix Virtualization Engine as a new authentication option for environments and databases. This minimizes the number of places where credentials need to be stored and, therefore the risk of insecure storage.

The Delphix Engine uses various authentication methods such as username/password, username/ssh key, and Kerberos credentials when connecting to hosts and databases from the Engine. These credentials are stored on the Delphix Engine in an encrypted format and can be retrieved later to perform various operations. Delphix provides an additional authentication method by integrating Virtualization with the most common vault types (CyberArk, HashiCorp. Azure Key Vault). At runtime, Delphix retrieves the credentials (passwords, ssh keys) from the customer's vault servers via API calls and avoids managing customer passwords.

Configuring password vaults

In the Setup app, system administrators can manage (add, delete, modify, and validate) vault configurations during and after the initial setup. Each engine can have multiple vaults configured of any type.

The authentication method supported for CyberArk is Certificate-based. Configuring a CyberArk vault requires providing a host address, port number, application ID, and a client certificate (certificate chain and private key).

The authentication methods supported for HashiCorp vaults are Token-based, AppRole-based, and Certificate-based. Configuring a HashiCorp vault requires providing TokenId/ RoleId-SecretId/Certificates along with the host address, port number, namespace. Support For HashiCorp namespace was added in Delphix 6.0.6.0.

Using password vaults

The Virtualization engine retrieves credentials at runtime from a vault using a unique identifier that locates a set of credentials in a configured vault. This occurs for any activity that requires Environment access (SnapSync, Validated Sync, LogSync, as well as Environment monitoring). This may result in a significant number of requests, so any existing connection rate limits should be evaluated and adjusted accordingly. For CyberArk, the unique identifier consists of a query string. For HashiCorp Vault, it consists of four parameters: engine, path, and a pair of keys that locate the username and secret (password or SSH key) in the key-value store at that engine and path.

To set up an environment or database user to use a vault, use the credential type VaultCredential when adding/modifying such users and specify the vault and the unique identifier of the credentials.

Roles and privileges for CyberArk and HashiCorp users

Role

Privileges

System Administrator

Can add, modify, delete, and list vault configurations.

Delphix Administrator

Can list existing vault configurations and link environment and database users to vault credentials.

Supported environments and databases

All environment users can use vault credentials. For Windows, the initial link via the Delphix Connector does not support vaults, but environment users can be subsequently updated to use vaults.

Vault integration is currently supported for SAP ASE database users, Oracle database users, and MSSQL domain users using 6.0.4 and later.

Setting up a vault via GUI

Complete setup via the GUI is available for CyberArk as of 6.0.3.0 and for HashiCorp as of 6.0.4.0.

  1. Connect to the Delphix Engine http://

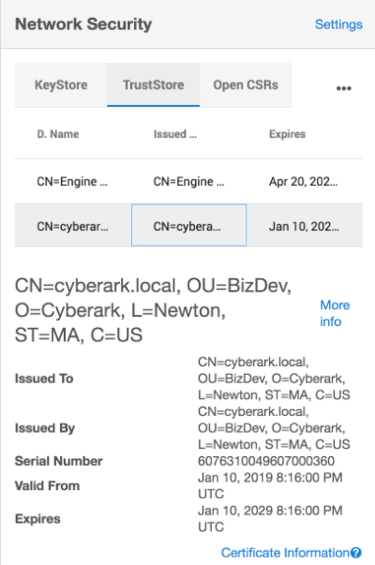

  2. Add a CyberArk or HashiCorp CA certificate to the TrustStore as part of the initial configuration. Refer TrustStore Settings for steps to add a CA certificate.

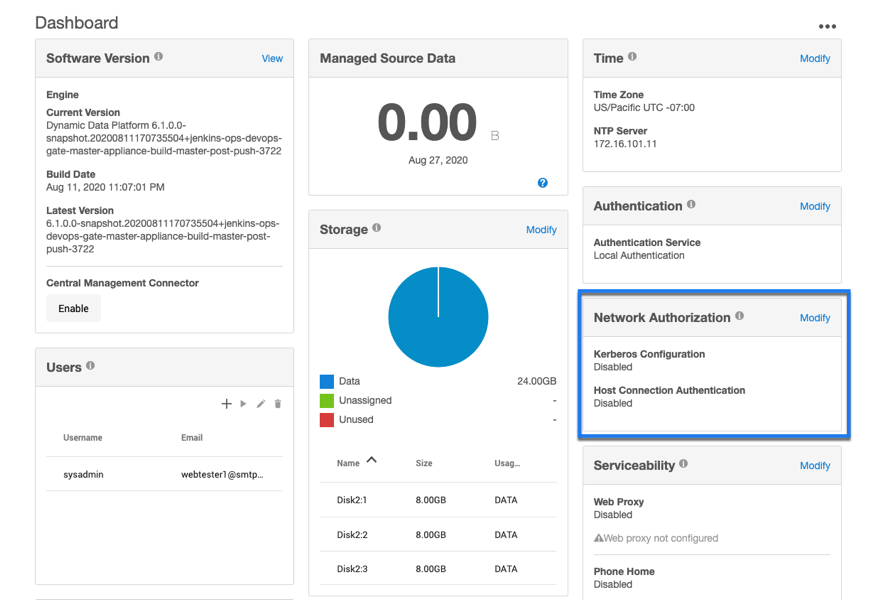

  3. Click on the Modify link in the top right of the Network Authorization panel.

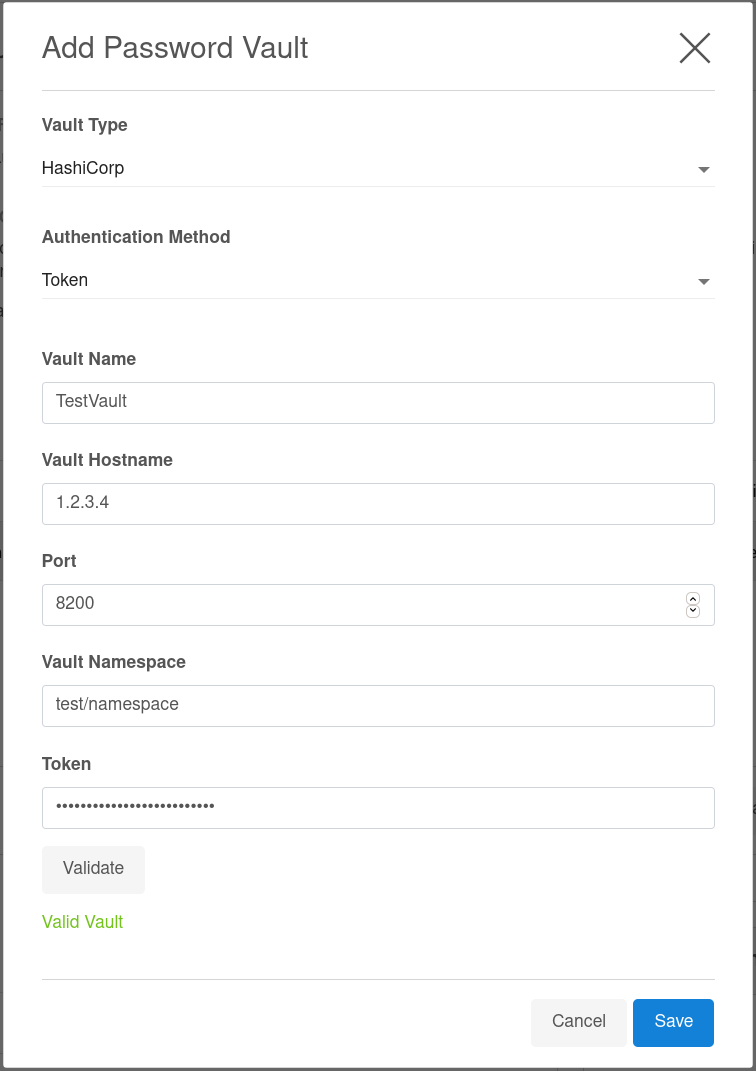

  4. On the Network Authorization window, click "+" to add a new vault.

  5. Enter the following information: Depending upon your requirements, you can set the configurations for CyberArk or HashiCorp.

Field

Possible value and data Type

description

Vault Type - CyberArk

Vault Name

<user-specified>

Accepts a string value

Specifies the user-specified vault name

Vault Hostname

mycyberark.myorg.com

Accepts a URL string value

Specifies the location of the user's vault server

Port

443

Accepts an integer value

Specifies the port number through which the communication will happen

App ID

MyAppID

Accepts a string value

Specifies an application ID registered with and provided by CyberArk

Authentication Certificate

——-BEGIN CERTIFICATE—-—

<certificate>

——-END CERTIFICATE—-—

Accepts a string value

Specifies the authentication certificate provided by CyberArk

Private Key

<CyberArk-provided>

Accepts a string value

Specifies the private key provided by CyberArk for TLS based authentication

Vault-Type - HashiCorp

Authentication method

Token

Vault Name

<user-specified>

Accepts a string value

Specifies the user-specified vault name

Vault Hostname

12.345.678.90

Accepts a URL string value

Specifies the location of the customer vault server

Port

8100

Accepts an integer value

Specifies the port number through which the communication will happen

Vault Namespace

purple

Accepts a string value

Specifies the namespace configuration specific to the user environment that is provided by the HashiCorp Enterprise Platform

Token

s.abcdefghijklmnopqrstuvwxyz123.waR7a

Accepts a string value

Specifies the token specific to the user environment that is provided by the HashiCorp Enterprise Platform

Authentication method

AppRole

Vault Name

<user-specified>

Accepts a string value

Specifies the user-specified vault name

Vault Hostname

12.345.678.90

Accepts a URL string value

Specifies the location of the customer vault server

Port

8100

Accepts an integer value

Specifies the port number through which the communication will happen

Vault Namespace

purple

Accepts a string value

Specifies the namespace configuration specific to the user environment. This feature is provided with the HashiCorp Enterprise Platform

RoleID

abcdefg123-4a56-7890-a2bc-34567def8901

Accepts a string value

Specifies the RoleID specific to the user environment

SecretID

ab1cde0f-123g-4h56-i789-1234jk567890

Accepts a string value

Specifies the SecretID specific to the user environment

Authentication method

Certificate

Vault Name

<user-specified>

Accepts a string value

Specifies the user-specified vault name

Vault Hostname

12.345.678.90

Accepts a URL string value

Specifies the location of the customer vault server

Port

8100

Accepts an integer value

Specifies the port number through which the communication will happen

Vault Namespace

purple

Accepts a string value

Specifies the namespace configuration specific to the user environment. This feature is provided with the HashiCorp Enterprise Platform

Authentication Certificate

——-BEGIN CERTIFICATE—-—

<certificate>

——-END CERTIFICATE—-—

Accepts a string value

Specifies the authentication certificate provided by HashiCorp for TLS based authentication

Private Key

abcdefg123-4a56-7890-a2bc-34567def8901

Accepts a string value

Specifies the private key specific to the user environment that is provided by HashiCorp for TLS based authentication

Role Name
(Optional)

purple-admin-role

Accepts a string value

Specifies the certificate role name for TLS based authentication

6. Click Validate to check the configurations before saving the vault details. The below screenshot shows an example of the HashiCorp Vault configuration.

7. Click Save.
The added configurations can be viewed in the Network Authorization window.

Editing a vault via the GUI

  1. Connect to the Delphix Engine http:// <Delphix Engine>/login/index.html#serverSetup.

  2. Click on the Modify link in the top right of the Network Authorization panel.

  3. In the Network Authorization window, select a vault, then the pencil icon.

  4. Edit your configuration.

  5. Select Edit.

Deleting a vault via the GUI

  1. Connect to the Delphix Engine http:// <Delphix Engine>/login/index.html#serverSetup.

  2. Click on the Modify link in the top right of the Network Authorization panel.

  3. In the Network Authorization window, select a vault, then select the trashcan icon.

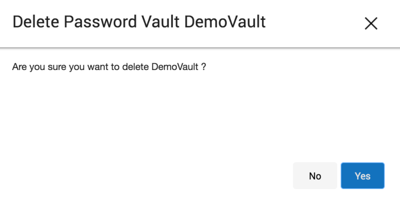

  4. Select Yes to delete the vault.

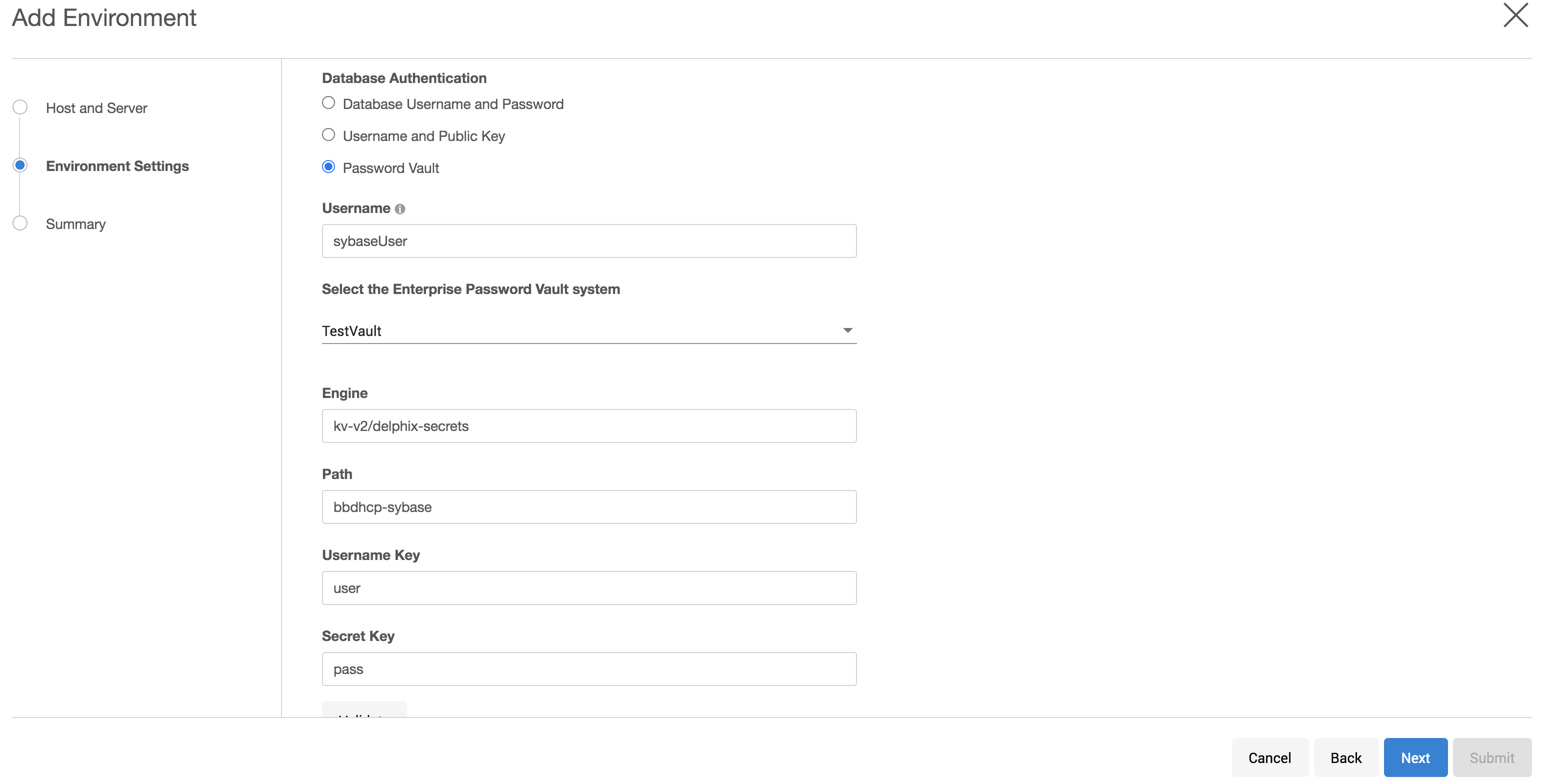

Adding a host user for HashiCorp

  1. Login to the Delphix Management Application and select Manage > Environments.

  2. Select Add Environment.

  3. In the Environment Setting tab, select Password Vault as the Login Type.

  4. Select the vault configuration and provide the secret engine name, path, and keys for the username secret and complete your environment configuration.

  5. The environment will be created with the primary user using vault credentials.

Adding a database user for HashiCorp

  1. Login to the Delphix Management Application.

  2. Add dSource using database credentials from HashiCorp vault by selecting Password Vault as the Login Type.

  3. Provide the appropriate secret engine name, path, and keys for the username secret and complete configuration.

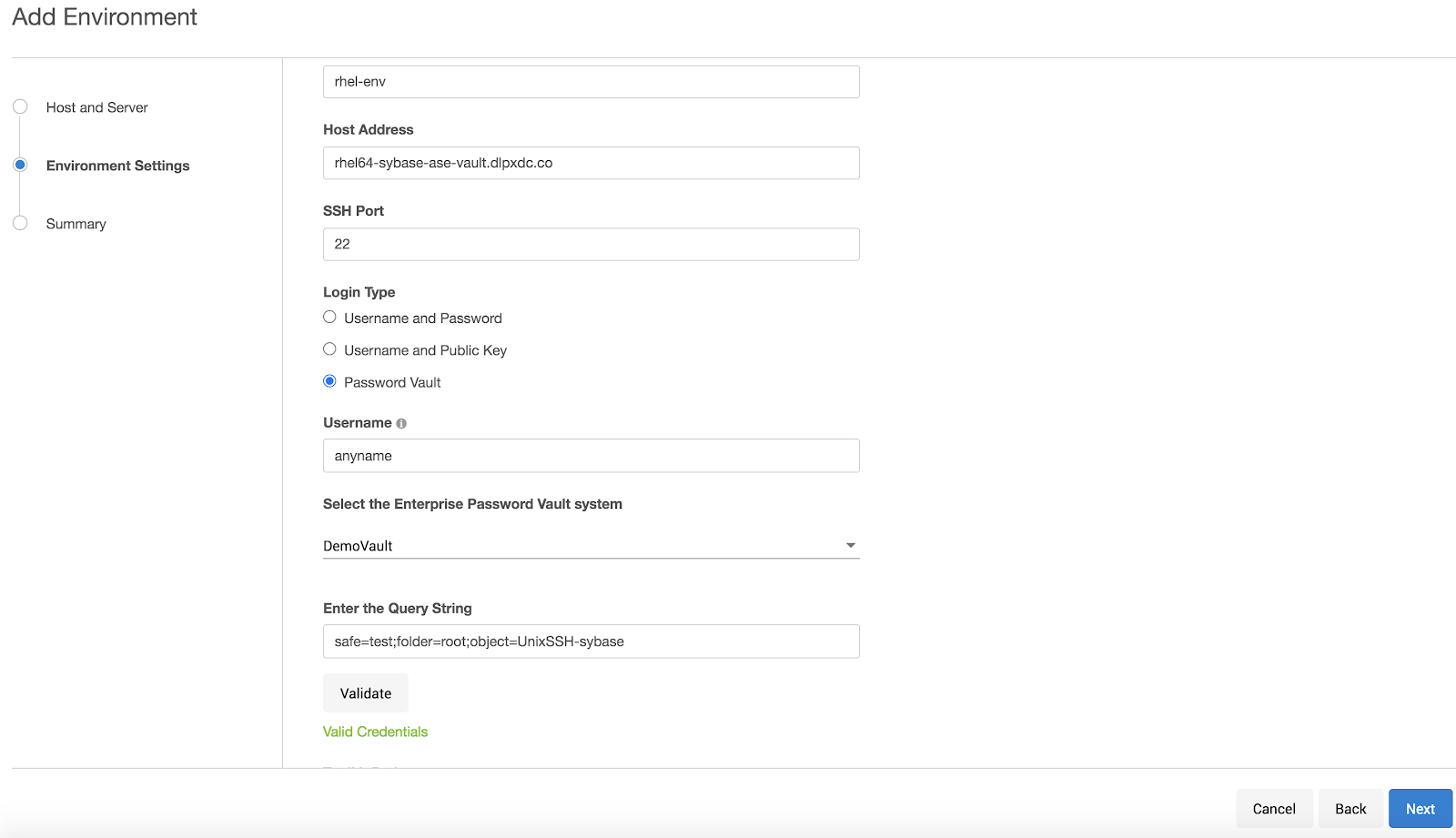

Adding a host user for CyberArk

  1. Login to the Delphix Management Application and select Manage > Environments.

  2. Select Add Environment.

  3. In the Environment Setting tab, select Password Vault as the Login Type.

  4. Select the vault configuration and provide the username, select the enterprise password vault system, and enter a query string that is a unique identifier pointing to the credentials to be retrieved and complete your environment configuration.

  5. The environment will be created with the primary user using vault credentials.

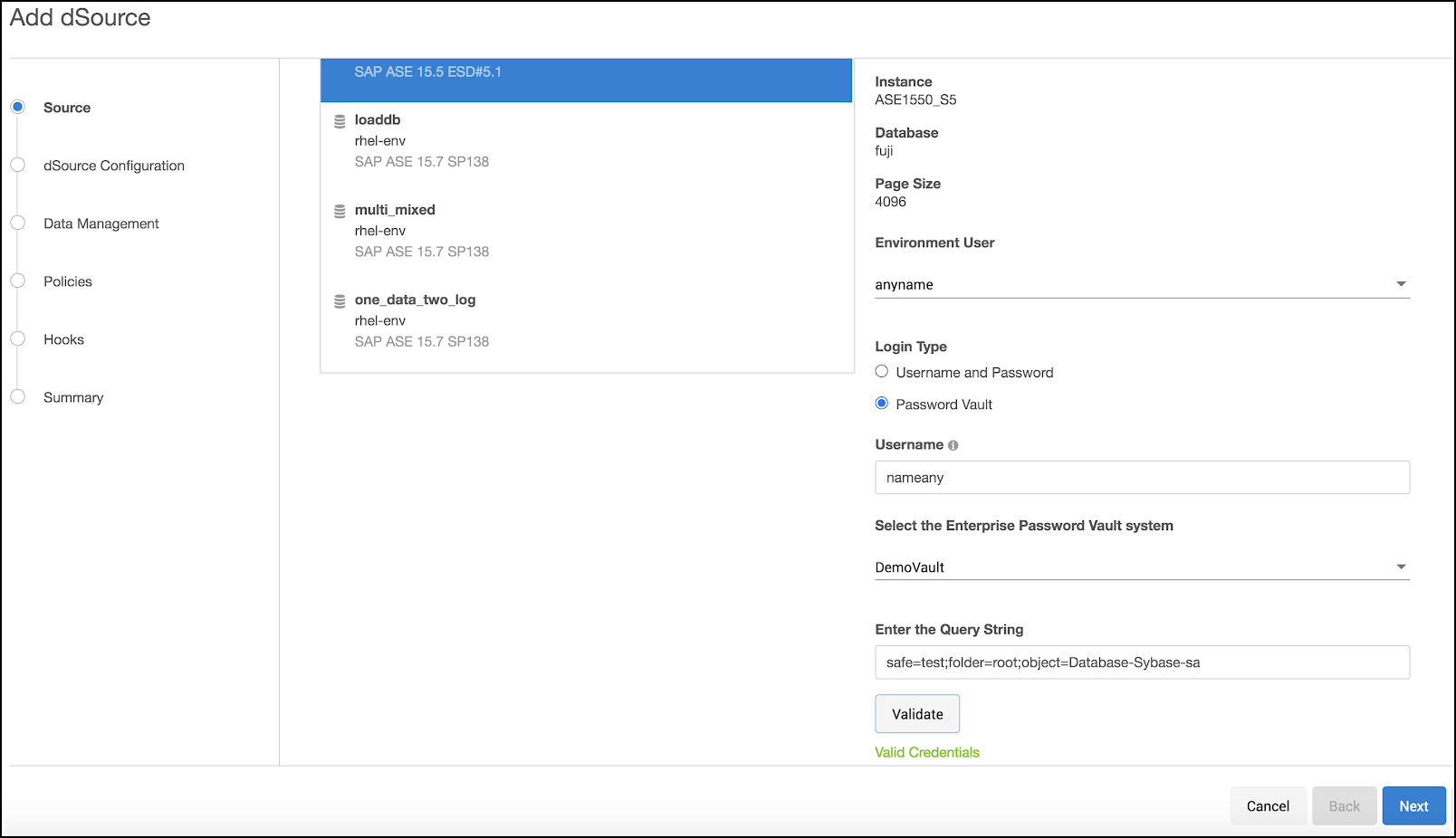

Adding a database user for CyberArk

  1. Login to the Delphix Management Application.

  2. Add dSource using database credentials from CyberArk vault by selecting Password Vault as the Login Type.

  3. Provide the appropriate query string and complete configuration.

Setting up a vault via CLI

  1. Login as a system administrator and add a CyberArk or HashiCorp CA certificate to the TrustStore as part of the initial configuration.

  2. SSH to <Delphix Engine IP>service passwordVault and enter create.

    CODE
    ip-10-110-230-197 service passwordVault>create
  3. Add a new vault configuration by entering a name, host, port, applicationId, client certificate, and private key.

    CODE
    ip-10-110-230-197 service passwordVault create
    Properties
    type: CyberArkPasswordVault
       name: DemoVault (*)
       applications: Delphix (*)
       clientCertificate:
          type: PemClientCertificate (*)
          clientCertificateChain: (required)
          privateKey:(required)
    host: services-uscentral.sktyop.com (*)
    port: 17993 (*)
  4. Add a new HashiCorp vault configuration by entering a name, host, port, and other authentication information based on the authentication method (Token/AppRole/Certificate) selected.

    HashiCorp - Token Based Authentication

    CODE
    ip-10-110-230-197 service passwordVault create
    Properties
        type: HashiCorpVault (*)
        name: HashiCorpDemoVault (*)
        authentication:
            type: HashiCorpTokenAuthentication (*)
            token: ******** (*)
        host: 10.119.132.40 (*)
        port: 8200 (*)

    HashiCorp - AppRole Based Authentication

    CODE
    ip-10-110-230-197 service passwordVault create
    Properties
        type: HashiCorpVault (*)
        name: HashiCorpDemoVault (*)
        authentication:
            type: HashiCorpAppRoleAuthentication (*)
            roleId: 20d19a46-6fd9-c78b-b7e3-e43be4c8d5c2 (*)
            secretId: ******** (*)
        host: 10.119.132.40 (*)
        port: 8200 (*)

    HashiCorp - Certificate Based Authentication

    CODE
    ip-10-110-230-197 service passwordVault create
    Properties
        type: HashiCorpVault (*)
        name: HashiCorpDemoVault (*)
        authentication:
            type: HashiCorpCertificateAuthentication (*)
            clientCertificate:
                type: PemClientCertificate (*)
                clientCertificateChain: (required)
                privateKey: (required)
            roleName: (unset)
        host: 10.119.132.40 (*)
        port: 8200 (*)

Updating an existing vault configuration

CODE
ip-10-110-230-197 service passwordVault> select DemoVault
ip-10-110-230-197 service passwordVault 'DemoVault'>update
ip-10-110-230-197 service passwordVault 'DemoVault'update *> set name=TestVault
ip-10-110-230-197 service passwordVault 'DemoVault'update *> commit
ip-10-110-230-197 service passwordVault 'TestVault'>

Deleting an existing vault configuration

CODE
ip-10-110-230-197 service passwordVault 'TestVault'> delete
ip-10-110-230-197 service passwordVault 'TestVault' delete *> commit
ip-10-110-230-197 service passwordVault>

Adding/Modifying host users

Add an environment with user credentials from CyberArk vault. When adding a host/database user with a vault credential, the name field would be a user identifier and not the actual username. In case this field is empty, a unique identifier is generated with a hash of vault credentials.

CODE
ip-10-110-230-197 environment create *> set hostEnvironment.name=bbh-env
ip-10-110-230-197 environment create *> set hostParameters.host.address=bbdhcp-vault-demo.dlpx.co
ip-10-110-230-197 environment create *> set hostParameters.host.toolkitPath="/work"
ip-10-110-230-197 environment create *> set primaryUser.name=oracleUser
ip-10-110-230-197 environment create *> set primaryUser.credential.type=VaultCredential
ip-10-110-230-197 environment create *> set primaryUser.credential.vault=DemoVault
ip-10-110-230-197 environment create *> set primaryUser.credential.vaultCredentialId="safe-test;folder=root;object=UnixSSH-sybase"
ip-10-110-230-197 environment create *> commit
    `UNIX_HOST_ENVIRONMENT -6
    Dispatched job JOB-33
    ENVIRONMENT_CREATE_AND_DISCOVER job started for "bbh-env".
    ENVIRONMENT_CREATE_AND_DISCOVER job for "bbh-env" completed successfully.

Adding/Modifying database users

Add dSource using database credentials from CyberArk vault.

CODE
ip-10-110-230-197 database link *> set name=fuji
ip-10-110-230-197 database link *> set group=Untitled
ip-10-110-230-197 database link *> set linkData.config=ASE_SI_CONF-70
ip-10-110-230-197 database link *> set linkData.dbUser=sybaseUser
ip-10-110-230-197 database link *> set linkData.dbCredentials.type=VaultCredential
ip-10-110-230-197 database link *> set linkData.dbCredentials.vault=DemoVault
ip-10-110-230-197 database link *> set linkData.dbCredentials.vaultCredentialOd="safe-test;folder=root;object=Database-Sybase-sa"
ip-10-110-230-197 database link *> set linkData.loadBackupPath='/opt/sybase/dumps"
ip-10-110-230-197 database link *> set linkData.sourceHostUser=HOST_USER-7
ip-10-110-230-197 database link *> set linkData.stagingHostUser=HOST_USER-7
ip-10-110-230-197 database link *> set linkData.stagingRepository=ASE_INSTANCE-6
ip-10-110-230-197 database link *> set linkData.syncParameters.type=ASENewBackupSyncParameters
ip-10-110-230-197 database link *> commit
    `ASE_DB_CONTAINER-1
    Dispatched job JOB-39
    DB_LINK job started for "Untitled/fuji".
    DB_LINK job for "Untitled/fuji" completed successfully.

Update Existing Database Users

Convert an existing database to use vault credentials for the existing database user.

CODE
ip-10-110-230-197 > sourceconfig
ip-10-110-230-197 sourceconfig > select MyOraDB
ip-10-110-230-197 sourceconfig "MyOraDB" > update
ip-10-110-230-197 sourceconfig "MyOraDB" *> set credentials.type=CyberarkVaultCredential
ip-10-110-230-197 sourceconfig "MyOraDB" *> set credentials.vault=MyVault
ip-10-110-230-197 sourceconfig "MyOraDB" *> set credentials.queryString="safe-test;folder=root;object=UnixSSH-delphix_db"
ip-10-110-230-197 sourceconfig "MyOraDB" *> set db_user="Vault-User"
ip-10-110-230-197 sourceconfig "MyOraDB" *> commit

The set db_user="Vault-User" is an optional step. If the db_user field is not changed, then it will continue to hold the old value. This value may no longer be correct, or the change to Vault credentials may represent an increase in the customer's security stance, and they may not want their Delphix Admins to know the username.

Setting up Vault via API

The vault API allows users to add, modify, delete, and list vault configurations and retrieving user credentials on a Delphix Engine.

Endpoint - https://<Delphix Engine IP>/resources/json/delphix/service/passwordVault

Sample API Request

CODE
{
    "type": "CyberArkPasswordVault",
    "name": "DemoVault",
    "host": "services-uscentral.skytap.com",
    "port": 17993,
    "applicationId": "Delphix",
    "clientCertificate": {
        "type": "PemClientCertificate",
        "privateKey": "-----BEGIN PRIVATE KEY-----<>-----END PRIVATE KEY-----",
        "clientCertificateChain": {
            "type": "PemCertificateChain",
            "chain": [
                {
                    "type": "PemCertificate",
                    "contents": "-----BEGIN CERTIFICATE-----<>-----END CERTIFICATE-----"
                }
            ]
        }
    }
}

Deleting an existing vault configuration

CODE
{
    "type": "CyberArkPasswordVault",
    "name": "DemoVault",
    "host": "services-uscentral.skytap.com",
    "port": 17993,
    "applicationId": "Delphix",
    "clientCertificate": {
        "type": "PemClientCertificate",
        "privateKey": "-----BEGIN PRIVATE KEY-----<>-----END PRIVATE KEY-----",
        "clientCertificateChain": {
            "type": "PemCertificateChain",
            "chain": [
                {
                    "type": "PemCertificate",
                    "contents": "-----BEGIN CERTIFICATE-----<>-----END CERTIFICATE-----"
                }
            ]
        }
    }
}

Adding/Modifying host users

Add an environment with user credentials from CyberArk vault. When adding a host/database user with a vault credential, the name field would be a user identifier and not the actual username. In case this field is empty, a unique identifier is generated with a hash of vault credentials.

CODE
{
"type": "HostEnvironmentCreateParameters",
"primaryUser": {
"type": "EnvironmentUser",
"credential": {
"type": "VaultCredential",
"vault": "CYBERARK_PASSWORD_VAULT-1",
"vaultCredentialId": "safe=test;folder=root;object=UnixSSH-sybase"
}
},
"hostEnvironment": {
"type": "UnixHostEnvironment",
"name": "bbh-env"
},
"hostParameters": {
"type": "UnixHostCreateParameters",
"host": {
"type": "UnixHost",
"address": "bbdhcp-vault-demo.dlpxdc.co",
"toolkitPath": "/work"
}
}
}

Adding/Modifying database users

Add dSource using database credentials from CyberArk vault.

The following a sample API link request for MSSQL Domain User.

CODE
{

    "type": "LinkParameters",

    "name": "ReportServer",

    "group": "GROUP-1",

    "linkData": {

        "type": "MSSqlLinkData",

        "config": "MSSQL_SINGLE_CONFIG-5",

        "sharedBackupLocations": [],

        "encryptionKey": "",

        "sourceHostUser": "HOST_USER-3",

        "mssqlUser":{

         "password": {

         "type": "VaultCredential",

         "vault": "CYBERARK_PASSWORD_VAULT-2",

         "vaultCredentialId": "safe=test;folder=root;object=Database-MSSql-addtully"

         },

         "type": "MSSqlDomainUser"

        },

        "pptRepository": "MSSQL_INSTANCE-4",

        "pptHostUser": "HOST_USER-3",

        "ingestionStrategy": {

         "validatedSyncMode": "TRANSACTION_LOG",

         "type": "ExternalBackupIngestionStrategy"

        },

        "sourcingPolicy": {

         "logsyncEnabled": false,

         "type": "SourcingPolicy"

        },

        "syncParameters": {

         "compressionEnabled": false,

         "backupPolicy": "PRIMARY",

            "type": "MSSqlNewCopyOnlyFullBackupSyncParameters"

        }

    }

}
JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
