Getting started

Delphix storage migration allows you to remove storage devices from your Delphix Engine, provided there is sufficient unused space, thus allowing you to repurpose the removed storage device to a different server. You can also use this feature to migrate your Delphix Engine to different storage by adding the new storage devices and then removing the old storage devices.

Feature compatibility

This feature is only compatible with Delphix Engine Releases 5.0.4 and later. This feature is not supported on Delphix Cloud Engines (Engines backed by s3 storage).

Possible Migration Methods

Method	Pros	Cons
Delphix Storage Migration	Good for migrating storage that was accidentally added to the engine or added to the engine improperly (wrong size). May reduce fragmentation if new storage is added to replace old disks. Good for migrating a small amount of storage (e.g.: < 10 TB).	With Delphix versions prior to 5.3, this mapping table can consume 2-3GB of RAM for every 1TB of allocated data that is migrated, if the disk being removed has a high level of fragmentation. From version 5.3, DxFS will migrate the data in larger blocks, comprising both allocated and unallocated space. This allows for significantly fewer mapping entries, with memory usage typically reduced to 50-100MB per TB of allocated data that is migrated. May increase fragmentation on remaining disks if no new disks are added. Depending on the size of the disk and storage performance this method could be less performant than other methods. Each device removed could take longer than the previous one as data is remapped across the remaining disks. The maximum number of 20 devices can be removed in releases prior to Delphix version 5.1.
vMotion	Fast	If there is high fragmentation on the existing disks, this is copied to the new disks.
Delphix Replication	Data is completely rewritten from one Delphix Engine to another which significantly reduces fragmentation on the new Delphix Engine. Replication can be configured to limit the impact on the network (compression and bandwidth). Replication is resumable from network disruptions, on in the event of replication source or target stack/host restarts. It is currently NOT possible to manually suspend/resume a replication job.	Depending on the number of objects to replicate as well as network and storage performance, this method could be considered slow. This does require an outage to "migrate" the objects from the replication source Delphix Engine to the replication target Delphix Engine - outage time depends on several factors like the number of objects, incremental replication time, time to enable/disable objects, etc. Only migrates storage objects like VDBs/dSources, and dependent environment information. Other items like users/policies/events/job history/config templates are NOT replicated.

Understanding Delphix storage migration

Delphix storage migration is a multi-step process:

Identify a storage device for removal. The device you choose will depend on your use case.
1. To remove extra storage that is unused, you can select any device for removal. For best performance, select the device with the least allocated space; typically, this is the device that you added most recently. The allocated space is defined by the usedSize property of the storage device:
  CODE
```
test-env@delphix 'Disk10:2'> ls
Properties
    type: ConfiguredStorageDevice
    name: Disk10:2
    bootDevice: false
    configured: true
    expandableSize: 0B
    model: Virtual disk
    reference:  STORAGE_DEVICE-6000c293733774b7bb0e4aea83513b36
    serial: 6000c293733774b7bb0e4aea83513b36
      size: 8GB
      usedSize: 7.56MB
    vendor: VMware
```
2. To migrate the Delphix Engine to new storage, add storage devices backed by the new storage to the Delphix Engine. Then remove all the devices on the old storage.
Use the Delphix command-line interface (CLI) to initiate the removal of your selected device.
Data will be migrated from the selected storage device to the other configured storage devices. This process will take longer the more data there is to move; for very large disks, it could potentially take hours. You can cancel this step if necessary.
The status of the device changes from configured to unconfigured and an alert is generated to inform you that you can safely detach the storage device from the Delphix Engine. After this point, it is not possible to undo the removal, although it is possible to add the storage device back to the Delphix Engine.
Use the hypervisor to detach the storage device from the Delphix Engine. After this point, the Delphix Engine is no longer using the storage device, and you can safely re-use or destroy it.

Limitations of Delphix storage migration

After removal, the Delphix Engine uses memory to track the removed data. In the worst-case scenario, this could be as much as 2-3 GB of memory per TB of used storage. Note that this is used storage; the overhead of removing a 1TB device with only 500MB of data on it will be much lower than the overhead of removing a 10GB device with 5GB of data on it.

User interface

Delphix storage migration is currently available exclusively via the CLI. There are two entry points.

verifyStorageDeviceRemoval- Verifies available pool space and available memory.
startStorageDeviceRemoval- Kicks off job, detailed discussion of job concurrency/recovery.

Device removal for storage migration

Do not remove a configured storage device

Do not remove a configured storage device or reduce its capacity. Removing or reducing a configured storage device will cause a fault with the Delphix Engine, and will require the assistance of Delphix Support for recovery.

Identify which device you want to remove.
1. If you are using a VMware RDM disk, note the UUID of the device by looking at its name in the vSphere GUI. For more information, see the Getting the UUID of a RDM Disk from VMware, via the vSphere GUI article.
2. If you are using a VMware virtual disk, note the UUID of the device via the vSphere API. See the section of this VMware KB article on how to get the UUID of your virtual disk.
3. In EC2, note the attachment point – e.g., /dev/sdf.
4. In KVM, note the UUID.
Login to the Delphix CLI as a sysadmin user.
Navigate to the storage/device directory with cd storage/device.

Select one or more devices to remove and make note of the name (e.g., select "Disk10:2" and "Disk10:3").

CODE

test-env@delphix storage/device> ls
Objects
NAME      CONFIGURED  SIZE  EXPANDABLESIZE
Disk10:2  true        8GB   0B
Disk10:0  true        24GB  0B
Disk10:1  true        8GB   0B
Disk10:3  true        8GB   0B

(For VMware only) Confirm the disk selection is correct by validating that the serial matches your UUID:

CODE

test-env@delphix storage device 'Disk10:2'> ls
Properties
   type: ConfiguredStorageDevice
   name: Disk10:2
   bootDevice: false
   configured: true
   expandableSize: 0B
   model: Virtual disk
   reference: STORAGE_DEVICE-6000c2909ccd9d3e4b5d62d733c5112f
   serial: 6000c2909ccd9d3e4b5d62d733c5112f
   size: 8GB
   usedSize: 8.02MB
   vendor: VMware

Navigate to storage/remove. Run verify and set the devices to be removed, as shown below.

CODE

test-env@delphix storage remove > verify
test-env@delphix storage remove verify *> set devices="Disk10:2,Disk10:3"
test-env@delphix storage remove verify *> commit
   type: StorageDeviceRemovalVerifyResult
   newFreeBytes: 15.85GB
   newMappingMemory: 3.14KB
   oldFreeBytes: 23.79GB
   oldMappingMemory: 0B

Navigate to storage/remove. Run start and set the devices to be removed, as shown below.

CODE

test-env@delphix storage remove > start
test-env@delphix storage remove start *> set devices="Disk10:2,Disk10:3"
test-env@delphix storage remove start *> commit
    Dispatched job JOB-4
    STORAGE_DEVICES_START_REMOVAL job started.
    STORAGE_DEVICES_START_REMOVAL job completed successfully.

Note : This does not signify that the device migration has been completed. A STORAGE_DEVICE_REMOVAL job will start for each device to be removed, which handles the data migration from that disk.

Wait for device evacuation to complete. Alternatively, you can cancel the evacuation.
Note:
Do not detach the device from the Delphix Engine in your hypervisor until the data evacuation is completed.
You can monitor the progress of the STORAGE_DEVICE_REMOVAL job in the Management GUI under System >Jobs.

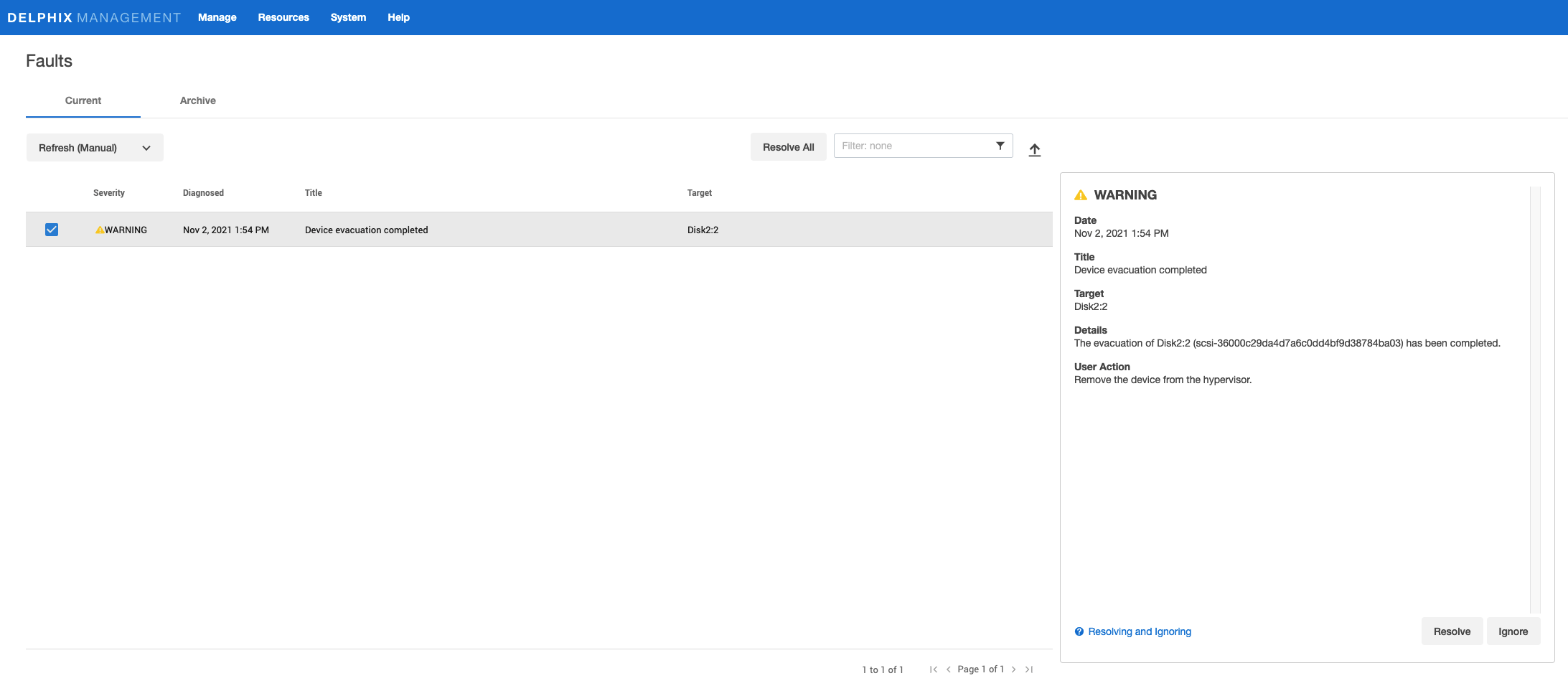

Once the device evacuation has been completed, the job will finish and a fault will be generated. Detach the disks from your hypervisor and the fault will clear on its own. An example of the fault created is shown below.

Using VMDKs

When using VMDKs, deleting the wrong VMDK could cause data loss. Therefore, it is highly advisable to detach the device, then verify that the Delphix Engine continues to operate correctly, and lastly delete the VMDK.

Getting the UUID of an RDM disk from VMware via the vSphere GUI.

In the event that the disk serial number displayed in Delphix does not match the UUID in VMware, the Delphix Engine must be powered off and back on in order to make VMware provide the correct values to the guest operating system (Delphix). This has been necessary when using vmkfstools with setuuid. When forcing the guest OS to re-read the SCSI sense data for the device, VMWare still provides the original values. Even after a simple reboot VMWare still provides the previous UUID values. It was not until the VM was explicitly powered off and back on did VMWare present the new UUID values to the guest. After which the UUIDs matched between the vmkfstools getuuid command and the CLI output.

In the ESX graphical user interface (GUI), select your VM.

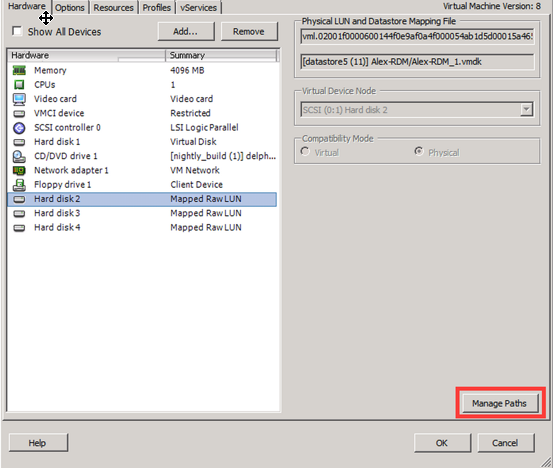

Click Edit settings.
If not already displayed, select the Hardware tab.
Select the device you want to remove.
Click Manage Paths.

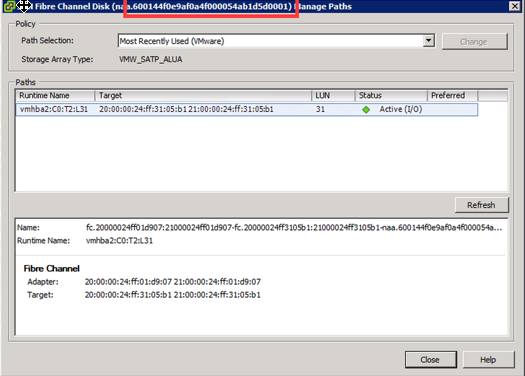

The UUID of the device appears in the title bar, as seen below.

Getting the UUID of a VMDK from VMware, via ssh to the ESX server

ssh onto the ESX server as the root user.

Navigate to the directory containing the .vmdk files for the Delphix VM.

CODE

Use the 'vmkfstools -J getuuid <.vmdk filename>' command to obtain the UUID, for example:

CODE

/vmfs/volumes/25894daa-f7b2b044/delphix01-2356 # vmkfstools -J getuuid delphix01-2356_1.vmdk
UUID is 60 00 C2 91 01 bc 8e 72-31 a4 cd b0 b3 f6 e5 74

Getting the UUID of a VMDK from VMware, via VMware PowerCLI

CODE

PS C:\> Connect-VIServer -Server durban -Protocol https -Username root -Password root_password

Name                           Port  User
----                           ----  ----
durban                         443   root


PS C:\> Get-VM delphixVM | Get-HardDisk | select name,filename,@{name="UUID";expr={$_.extensiondata.backing.uuid}}

Name                                        Filename                                    UUID
----                                        --------                                    ----
Hard disk 1                                 [zfs_delphixVM] dlpx-5.1.9.0-432-61155cf... 6000C294-a115-0327-e417-02560d86e944
Hard disk 2                                 [zfs_delphixVM] dlpx-5.1.9.0-432-61155cf... 6000C299-38fe-5050-1eb2-1ee6db62b257
Hard disk 3                                 [zfs_delphixVM] dlpx-5.1.9.0-432-61155cf... 6000C294-662d-c674-8957-03e0514b7006
Hard disk 4                                 [zfs_delphixVM] dlpx-5.1.9.0-432-61155cf... 6000C29d-0719-1072-0f85-96da2efef4a3

PS C:\> Disconnect-VIServer

Confirm
Are you sure you want to perform this action?
Performing operation "Disconnect VIServer" on Target "User: root, Server: durban, Port: 443".
[Y] Yes  [A] Yes to All  [N] No  [L] No to All  [S] Suspend  [?] Help (default is "Y"): Y
