In-place block-to-object storage migration

Introduction

The Elastic Data product uses object storage to provide a cost-effective and flexible medium for storing an engine’s data without compromising performance for most workloads. From version 15.0.0.0 and later, it is possible for a sysadmin to migrate an engine’s storage pool residing in local block storage to object storage backends, in-place and with no downtime.

If your kernel version is below 15.0, you cannot perform an in-place block-to-object storage migration. To enable this feature, you must first run a full upgrade to version 15.0 or higher.

Prerequisites

The migration process requires:

An object storage endpoint with access credentials where the data from the block-based storage pool will be migrated to. The object storage backend needs to be supported by the Continuous Data Engine (e.g. AWS S3, Azure Blob, OCI Object Storage, and various on-prem solutions).
One or more high performance block device(s), to be used as an object storage cache during and after the migration is finalized. Disks that are currently configured in your Continuous Data Engine cannot be used for this purpose.

Limitations

In-place migration is an irreversible operation. Once started, it cannot be stopped, nor paused, nor reversed.

Additionally, during the migration process, sysadmins are not able to add or remove block devices for data storage. Cache device removal is not allowed either while the migration is in progress. Cache device additions are allowed at any time (e.g. to improve performance during or after the migration).

Other methods of migration

An alternative to this feature would be replicating data to a new engine that was created with an object storage-backed pool from the start. This approach has some potential drawbacks:

This migration path is not viable for engines that already use replication.
The process is complex and potentially error-prone. The sysadmin would need to: Create a new VM, start the replication, notify their users, update infrastructure to use the new VM, and finally delete the old VM.
Infrastructure requirements temporarily double. While transitioning, the sysadmin needs to use double the infrastructure that would normally be needed. This can be a tough requirement to meet when multiple product engines need to be migrated.
There is downtime involved. If the write-load of the transitioning VMs is high, sysadmins may need to plan some downtime for finalizing replication and switching users over to the new VM.
The process can be time-consuming. Multi-TB storage pools may take too long to migrate, as the network is involved in two places: replication and writes to the object storage. An in-place migration only involves the network when writing to the object storage.

Instructions

The following example walks through a migration in AWS for a storage pool migrating from EBS Volumes to S3. Please adjust the steps for your cloud platform accordingly.

Add one or more high-performance block device(s) to your engine from the cloud console or hypervisor to be used as a cache. In this example, two gp3 EBS Volumes have been added to a demo VM.
Login to the Delphix CLI as a sysadmin user.

Navigate to the storage/device directory with cd storage/device. Type ls to list all devices currently detected by the VM and find the name of the block device you just added.

CODE

ip-10-110-196-27> cd storage/device
ip-10-110-196-27 storage device> ls
Objects
NAME  BOOTDEVICE  CONFIGURED  SIZE  EXPANDABLESIZE  FRAGMENTATION  ALLOCATING
xvda  true   true    70GB  0B   NA     true
xvdb  false  true   100GB  0B   54%    true
xvdc  false  true   100GB  0B   58%    true
xvdd  -      false   50GB   -     -                 -
xvde  -      false   50GB   -     -                 -

In the above sample, the devices just added stands out because they are the only non-configured ones; xvdd and xvde.

Navigate to the /storage/migrate directory with cd /storage/migrate/. Type start to start the migration API form and (optionally) ls to list all fields that are required for submitting the migration job.

CODE

ip-10-110-196-27 storage device> cd /storage/migrate/
ip-10-110-196-27 storage migrate> start
ip-10-110-196-27 storage migrate start *> ls
Properties
    type: BlobObjectStore
    accessCredentials: (unset)
    cacheDevices: (unset)
    configured: false
    container: (unset)
    endpoint: (unset)
    size: (unset)

Set the correct type of object storage (in this case S3ObjectStore) with the set command:
CODE
```
ip-10-110-196-27 storage migrate start *> set type=S3ObjectStore
```

Set the access credential type and info (this can vary by hypervisor/cloud provider).

Using AWS instance profile authentication is simple and can be done with a single command:

CODE

ip-10-110-196-27 storage migrate start *> set accessCredentials.type=S3ObjectStoreAccessInstanceProfile

If access key credentials are preferred, then the access ID and its respective key should be specified:

CODE

ip-10-110-196-27 storage migrate start *> set accessCredentials.type=S3ObjectStoreAccessKey
ip-10-110-196-27 storage migrate start *> set accessCredentials.accessId=<redacted>
ip-10-110-196-27 storage migrate start *> set accessCredentials.accessKey=<redacted>

Input the object storage’s endpoint and related info (the fields may vary based on the hypervisor/cloud provider object storage that you want to connect to):

CODE

ip-10-110-196-27 storage migrate start *> set endpoint=https://s3-us-west-2.amazonaws.com
ip-10-110-196-27 storage migrate start *> set region=us-west-2
ip-10-110-196-27 storage migrate start *> set bucket=delphix-data
ip-10-110-196-27 storage migrate start *> set size=500G

The size field is the storage quota that the sysadmin can use to limit the engine’s usage of the object storage backend. The sysadmin can change that value post-migration as needed if their storage requirements change.

Finally, set the cache to the new devices that were added in step one (see name of devices in step three):
CODE
```
ip-10-110-196-27 storage migrate start *> set cacheDevices=xvdd,xvde
```

(Optional) Type ls once more to verify that all your info is entered correctly:

CODE

ip-10-110-196-27 storage migrate start *> ls
Properties
    type: S3ObjectStore (*)
    accessCredentials:
        type: S3ObjectStoreAccessKey (*)
        accessId: ******* (*)
        accessKey: ******** (*)
    bucket: delphix-data (*)
    cacheDevices: xvdd, xvde (*)
    configured: false
    endpoint: https://s3-us-west-2.amazonaws.com (*)
    region: us-west-2 (*)
    size: 50GB (*)

Type commit to submit the migration job (warning, this is an irreversible operation - see Limitations section). If there is something wrong with the credentials, the connectivity of the VM, or any of the above parameters that you typed above, the command will fail and give a helpful message. Otherwise, if everything is correct, you will see the message below:
CODE
```
ip-10-110-196-27 storage migrate start *> commit
    Dispatched job JOB-23
    OBJECT_STORE_MIGRATE job started for "unknown".
    OBJECT_STORE_MIGRATE job for "unknown" completed successfully.
```
The above means that the job submission was successful and it is running in the background.

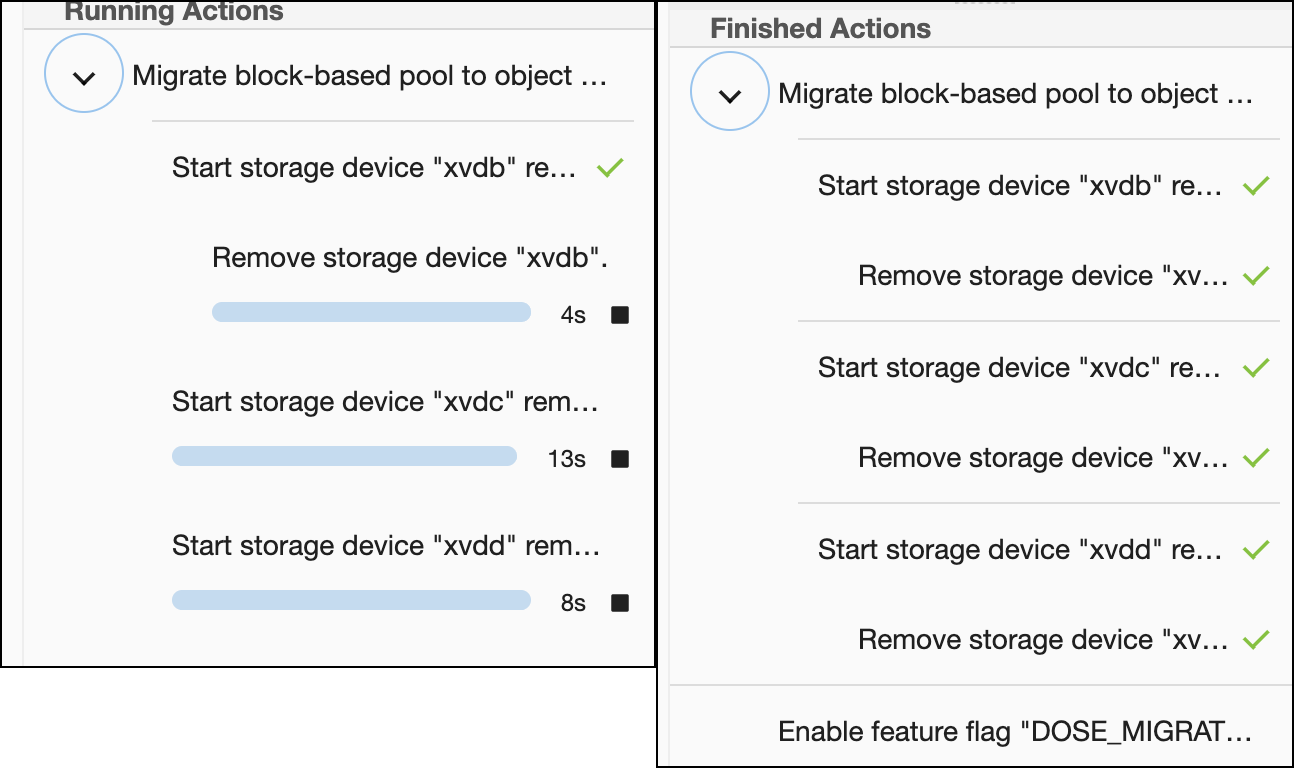

There are a couple of ways to track the job’s progress. The easiest way is viewing the Actions Panel in the sysadmin UI (see Viewing actions status for more details).

The other way is through the CLI by typing cd /storage/migrate and then running ls:
CODE
```
ip-10-110-228-202 storage migrate> ls
Properties
    type: ObjectStoreMigrationStatus
    mappingMemory: 0B
    startTime: 2023-08-25T23:48:03.077Z
    state: ACTIVE
    total: 20.13MB
```
